Odometer: Testing and Inspection

Inspection

Trip Switch
1. Disconnect the negative (-) battery terminal.
2. Remove the cluster (A).

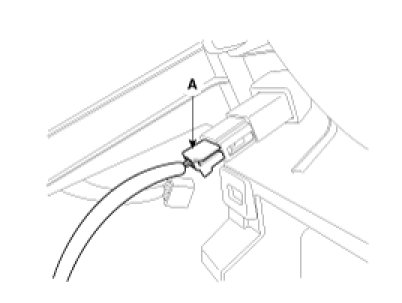

3. Remove the trip switch connector (A) from the main crash pad.

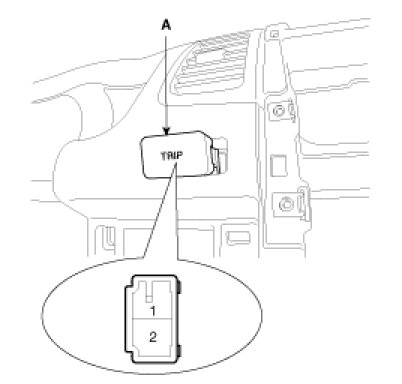

4. Remove the trip switch (A).

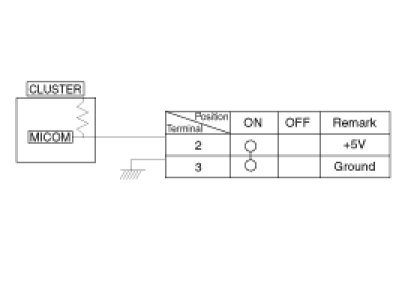

5. Check for continuity between the terminals in each switch position according to the table.
