Muffler: Service and Repair

Removal

1. Remove the catalytic converter (A).

Tightening torque :
Bolts : 43.1 - 45.1N.m (4.4 - 4.6kgf.m, 31.8 - 33.3lb-ft)
Nuts : 39.2 - 49.0N.m (4.0 - 5.0kgf.m, 28.9 - 36.2lb-ft)

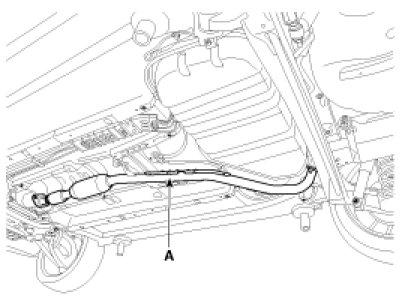

2. Remove the center muffler (A).

Tightening torque :
39.2 - 49.0N.m (4.0 - 5.0kgf.m, 28.9 - 36.2lb-ft)

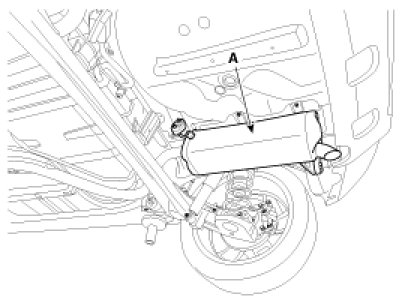

3. Remove the main muffler (A).

Tightening torque :
39.2 - 49.0N.m (4.0 - 5.0kgf.m, 28.9 - 36.2lb-ft)
