Seat Cushion Heater

Replacement

Seat Cushion Heater Replacement
1. Remove the seat cushion cover.

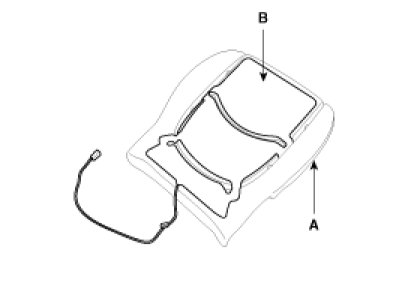

2. Cut the heater (B) attached to the pad (A), as shown in the picture.

CAUTION:
- Take care not to damage the slave pad.sponge.




3. Install the seat cushion cover.
A. Detach the paper from the back of the heater assembly.
B. Attach the heater to the main part of the sponge.

CAUTION:
- Be sure to match the heater with main appearance.
