Seat Back Frame: Service and Repair
Replacement
Seat Frame Replacement
1. Remove the following items.
A. Recliner cover.
B. Seat back panel.
C. Headrest guide.

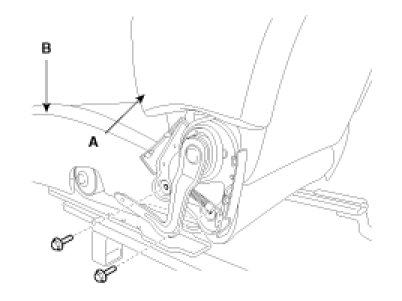

2. After removing the mounting bolts, then disconnect the seat back frame (A) and seat cushion frame (B).
NOTE:
- Remove the side air bag for replacing side air bag installation seat.
- Before service, be fully aware of precautions and service procedure relevant to air bag
3. Remove the seat back cover.
4. Remove the seat cushion cover.
5. Installation is the reverse of removal.
