Luggage / Roof Rack: Service and Repair

Replacement

Roof Rack Replacement
- When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Put on gloves to protect your hands.
- Take care not to scratch the body surface.

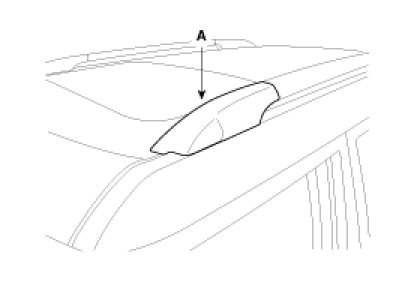

1. Remove the roof rack cover (A).

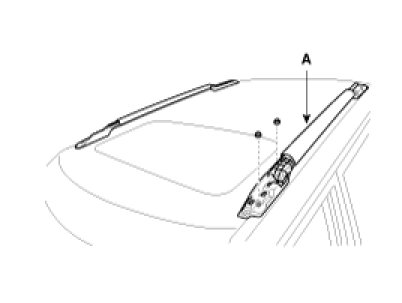

2. Remove the roof rack (A).




3. Installation is the reverse of removal.
