Glove Compartment: Service and Repair
Replacement
Glove Box Replacement
1.
Open the glove box.
2.

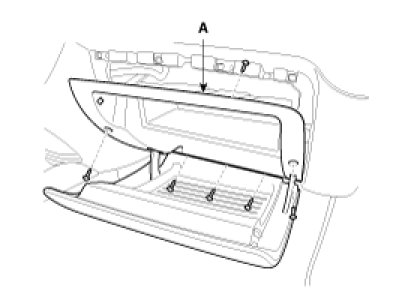

After loosening the mounting screws, remove the glove (A).
3.
Installation is the reverse of removal.
