Cluster Fascia Replacement

Replacement

Cluster Fascia Replacement

NOTE:
- When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Put on gloves to protect your hands.

1. Tilt the steering column down.

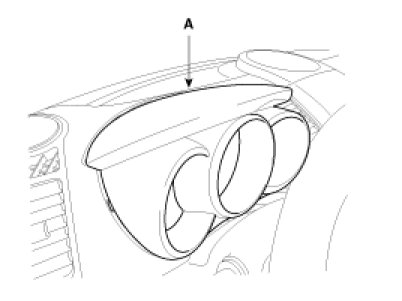

2. Remove the cluster fascia panel (A).




3. After loosening the mounting screws, remove the cluster fascia (A).

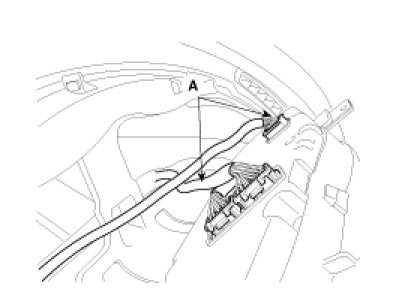

4. Disconnect the connector (A).




5. Installation is the reverse the removal.

NOTE:
- Make sure the connector is plugged in properly.
