Hood Latch: Service and Repair

Replacement

Hood Latch Replacement

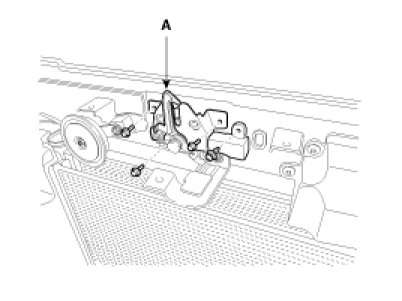

1. Remove the hood latch (A) mounting bolts.
2. Disconnect the hood latch cable and remove the latch.

Tightening torque :
6.9 - 10.8N.m (0.7 - 1.1kgf.m, 5.1 - 8.0 lb-ft)




3. Installation is the reverse of removal.

NOTE:
- Make sure the hood latch cable is connected properly.
- Make sure the hood locks securely.
