Monitor DTC Status

P0230 Fuel Pump Primary Circuit

Scantool Diagnostics

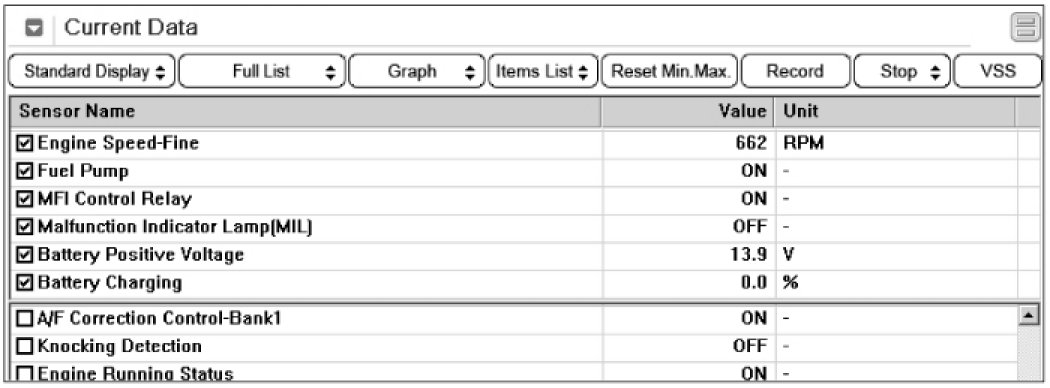

Monitor GDS Data

1. Connect GDS to Data Link Connector (DLC).
2. Engine start.
3. Monitor the "Fuel pump relay" parameters on the GDS.

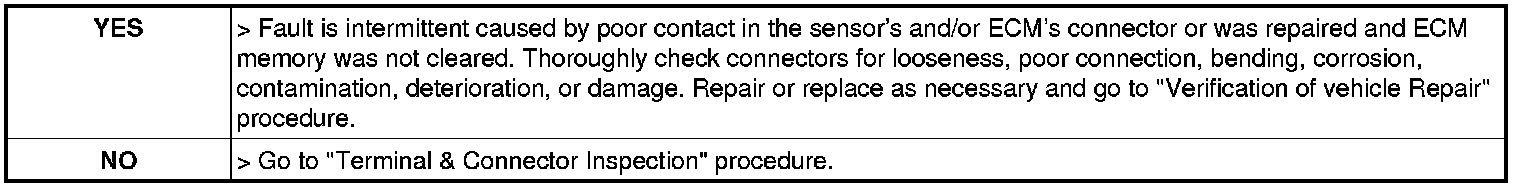

4. Are the parameters displayed correctly?
