Component Inspection

P0116 Engine Coolant Temperature Circuit Range / Performance

Inspection/Repair - Component Inspection

Component Inspection

Check ECTS resistance
1. IG KEY "OFF".
2. Disconnect ECTS connector.
3. Measure resistance between signal and ground terminal of ECTS connector (Component Side).

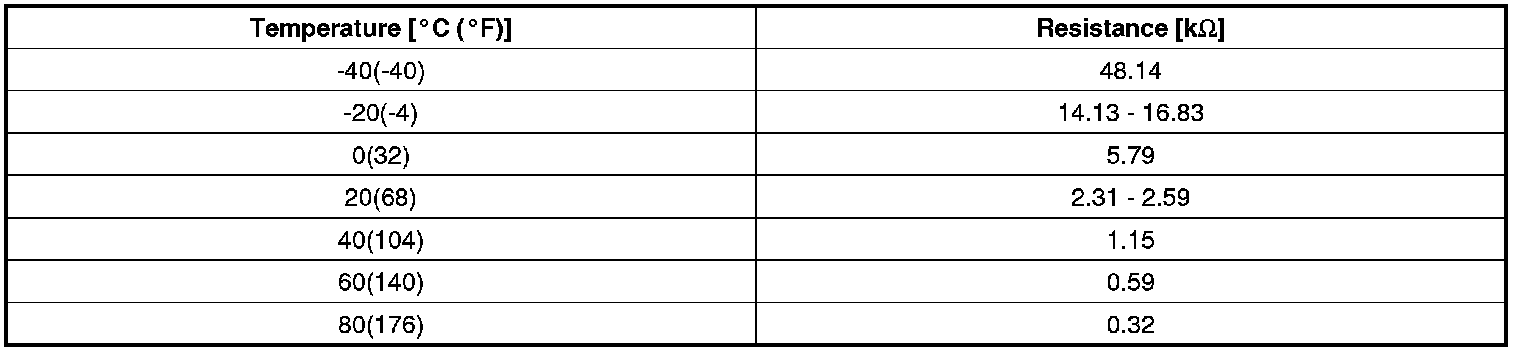

Specification :









4. Is the measured resistance within specification?
