Component Inspection

P0113 Intake Air Temperature Sensor 1 Circuit High Input

Inspection/Repair - Component Inspection

Component Inspection

Check IATS resistance
1. IG KEY "OFF".
2. Disconnect IATS connector.

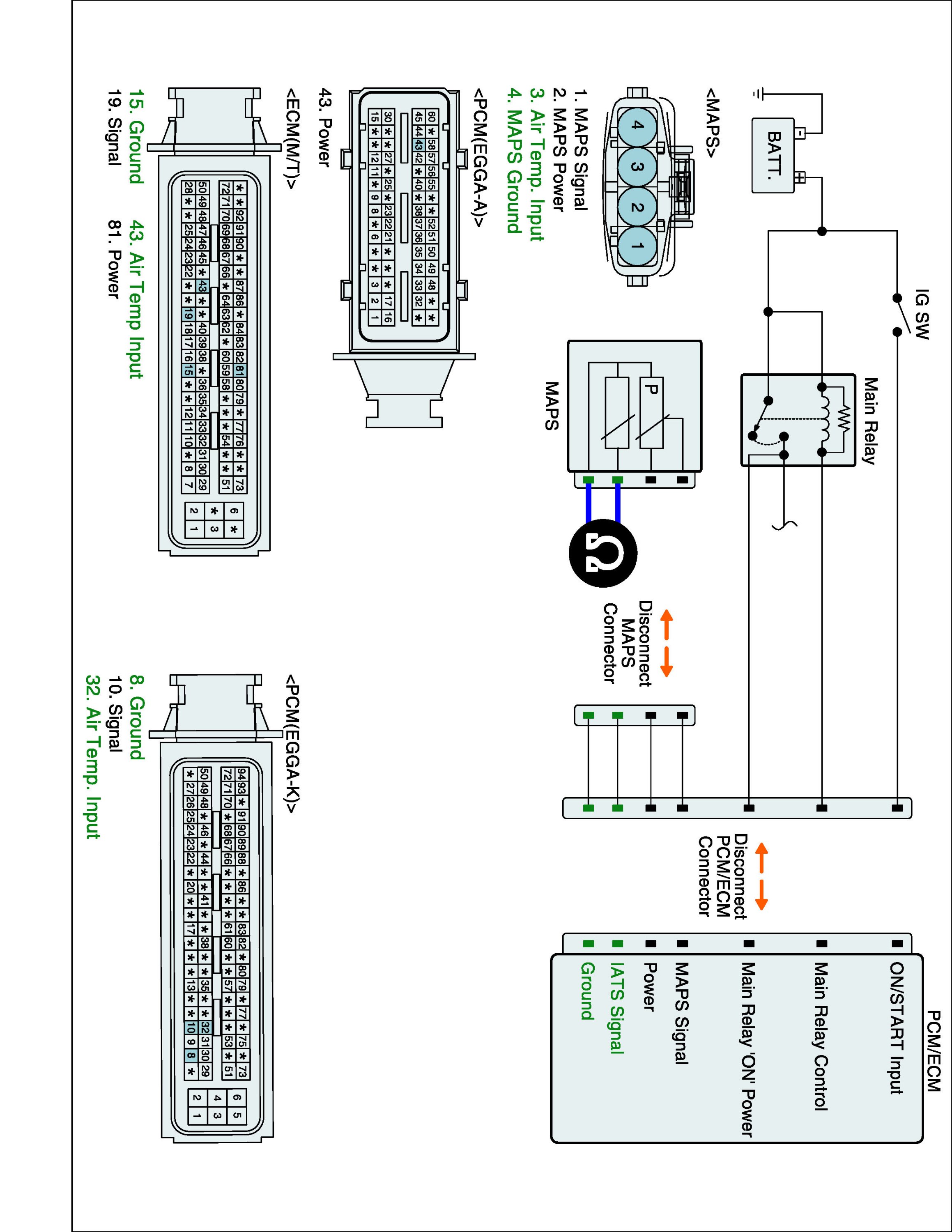

3. Measure resistance between signal and ground terminal of IATS connector (Component Side)

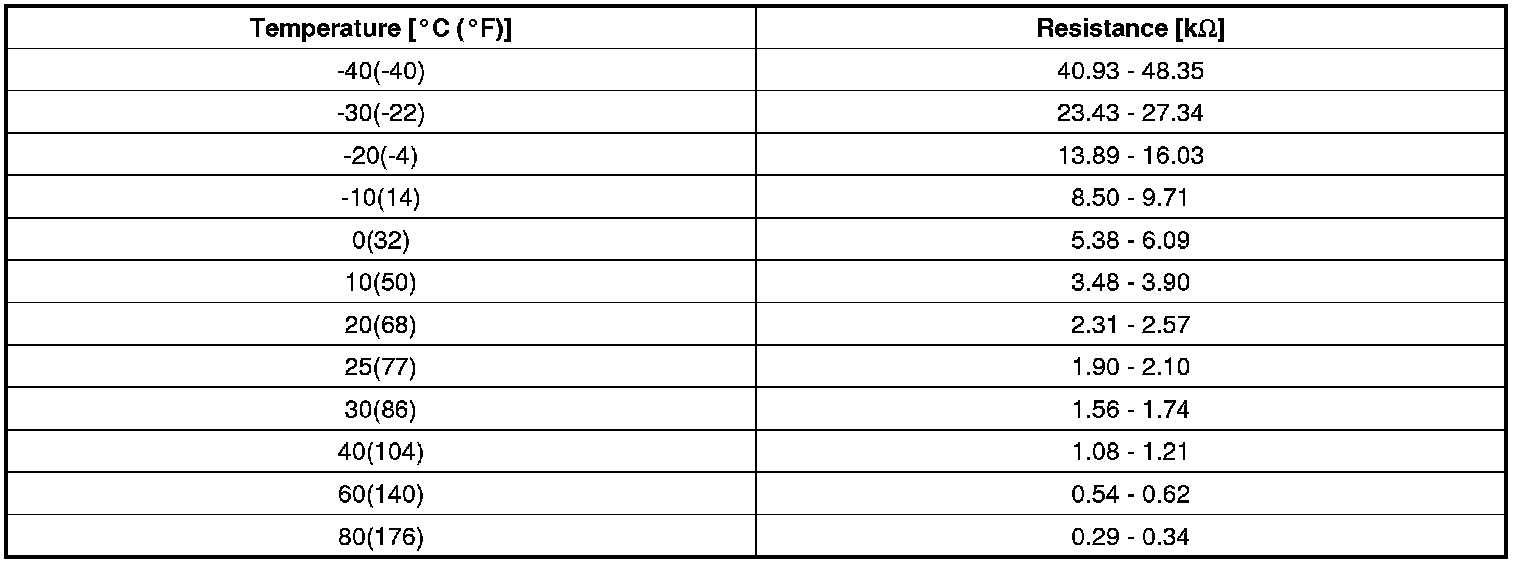

Specification :









4. Is the measured resistance within specification?
