Monitor DTC Status

P0076 Intake Valve Control Solenoid Circuit-Low (Bank 1)

Scantool Diagnostics

Monitor GDS Data

1. Connect GDS to DLC (Data Link Cable).
2. Warm up the engine to normal operating temperature.
3. Monitor "CVVT" parameter on GDS.

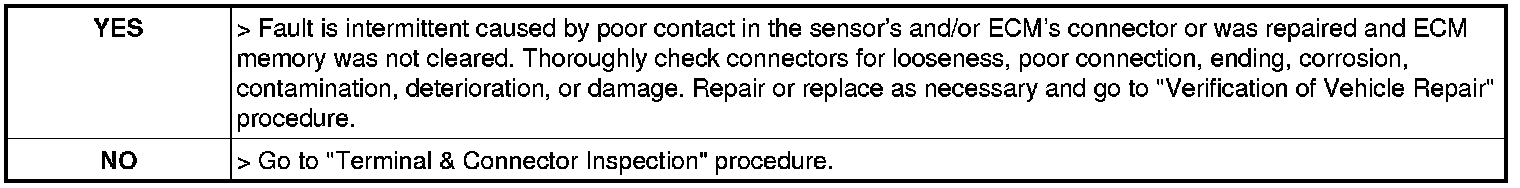

4. Are the parameters displayed correctly?
