Monitor DTC Status

P0068 MAP (MAF) - Throttle Position Sensor Correlation

Scantool Diagnostics

Monitor GDS Data

1. Connect GDS to Data Link Connector (DLC).
2. Warm up the engine to normal operating temperature.
3. Monitor the "TPS and MAFS (MAPS)" parameters on the GDS.

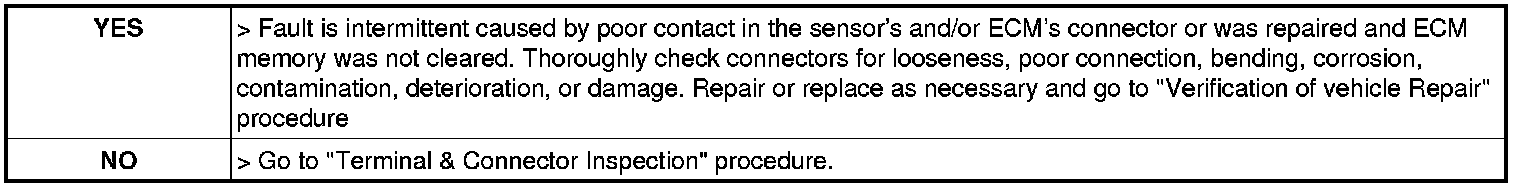

4. Is parameter displayed within specifications?
