Home >> Kia >> 2010 >> Rondo V6-2.7L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Relays and Modules - Power and Ground Distribution >> Relay Box >> Locations >> Relay Box (Engine Compartment)

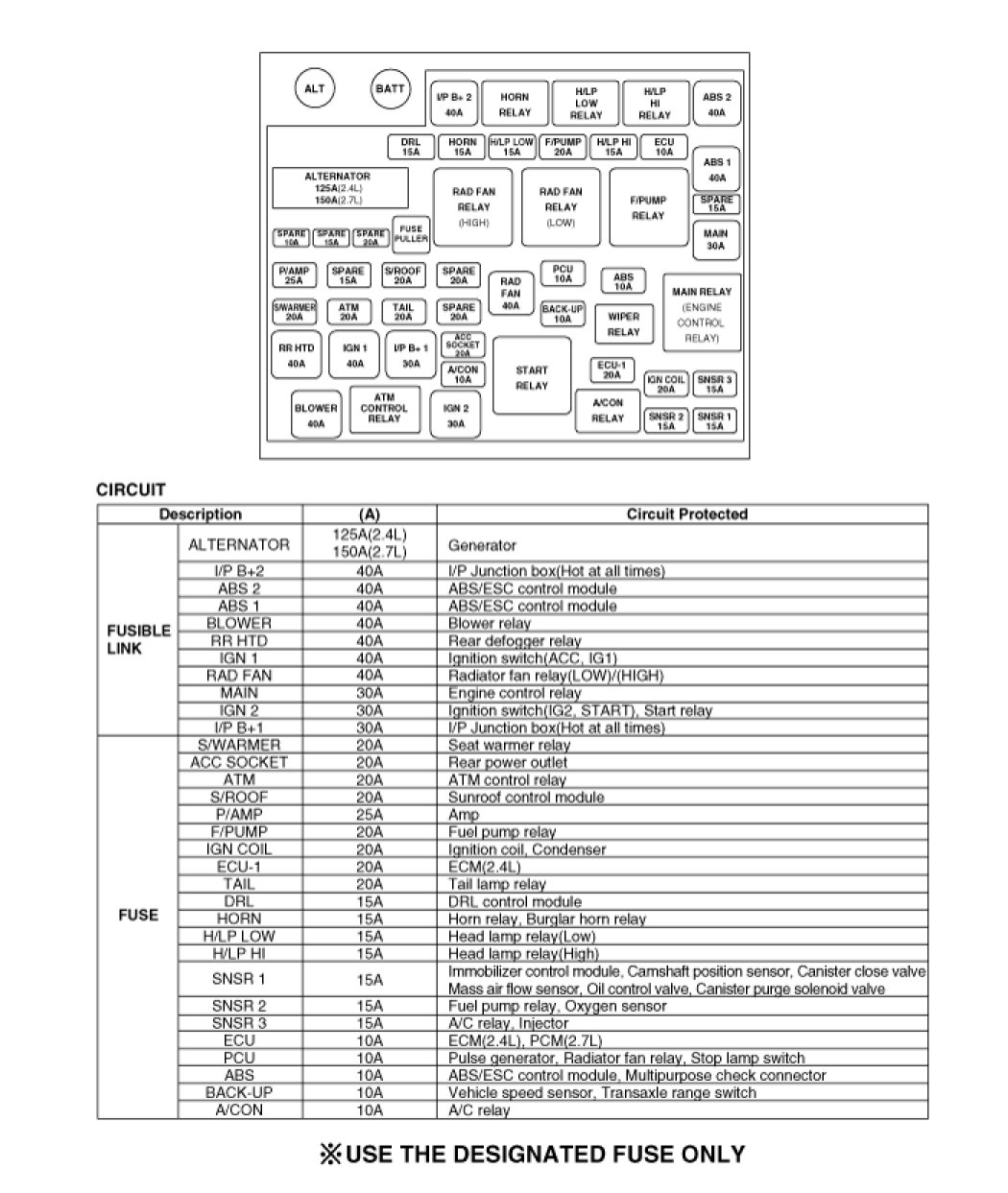

Relay Box (Engine Compartment)





COMPONENT LOCATION
