Disassembly

DISASSEMBLY

1. Remove the alternator cover(A) using a screw driver(B).




2. Remove the slip ring guide(A).
3. Loosen the mounting bolts(B) and disconnect the brush holder assembly(C).




4. Remove the rectifier(A) with 4 screws.




5. Remove the nut, pulley (A) and spacer.

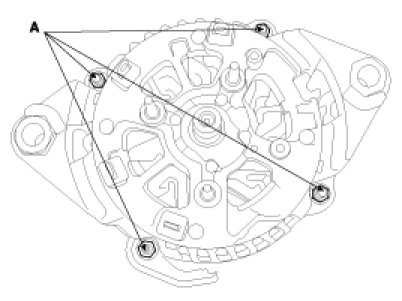

6. Loosen the 4 through bolts(A).




7. Disconnect the rotor(A) and cover(B).




8. Reassembly is the reverse order of disassembly.
