Pinout Values and Diagnostic Parameters





ECM Terminal And Input/Output signal

ECM Harness Connector

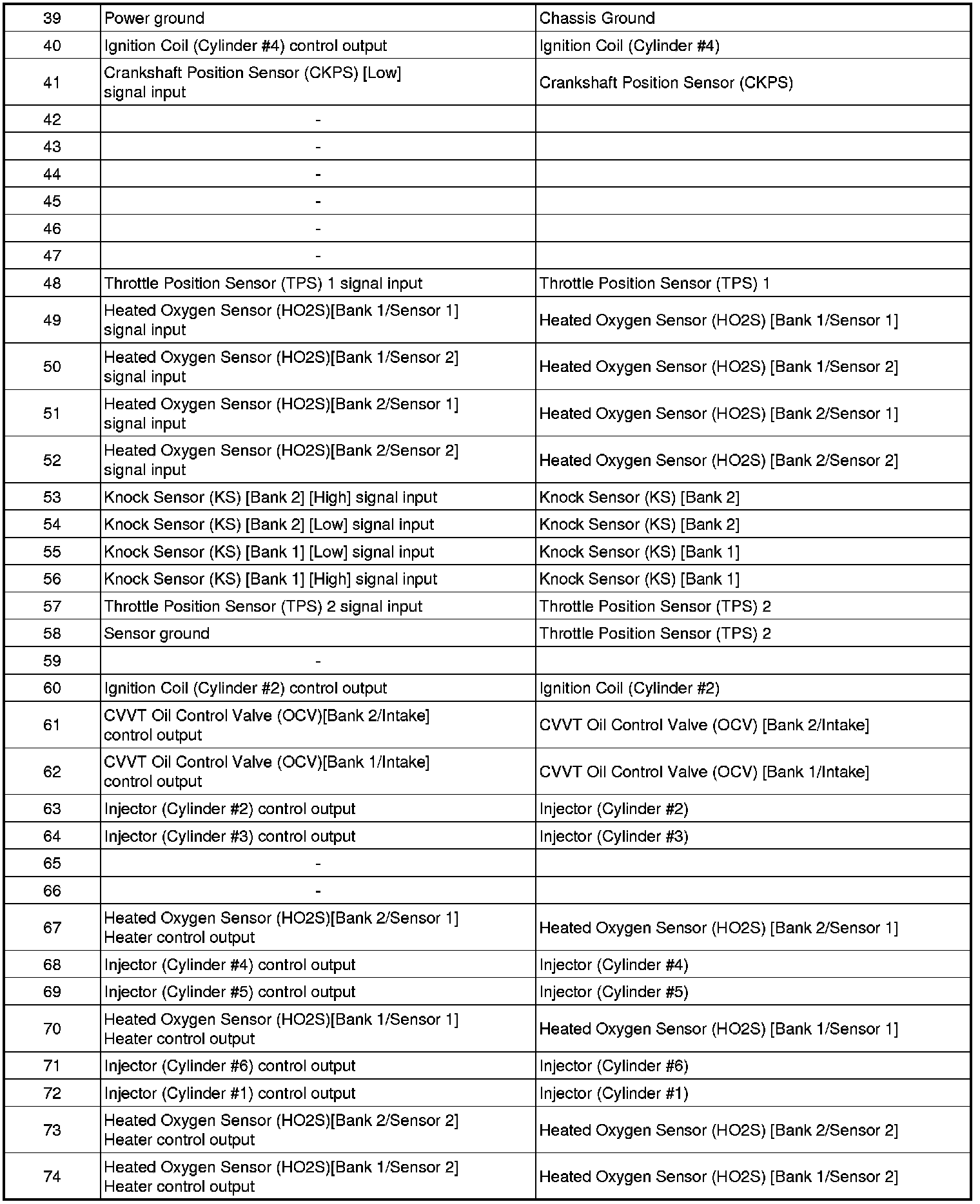

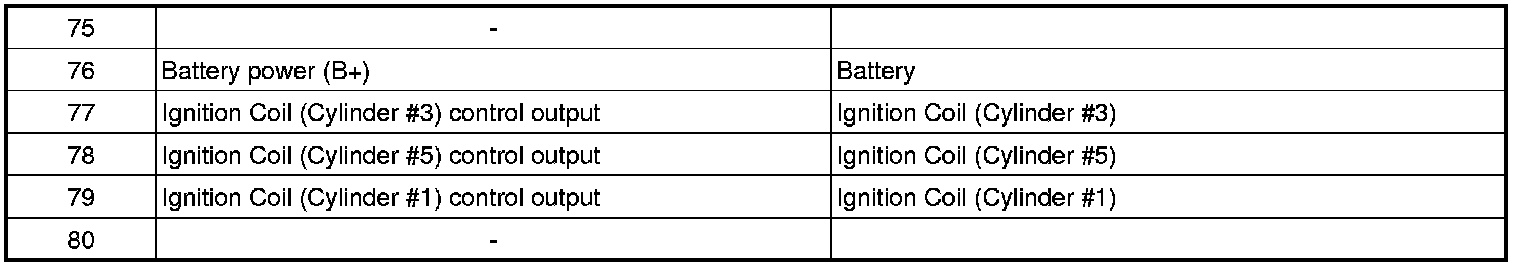

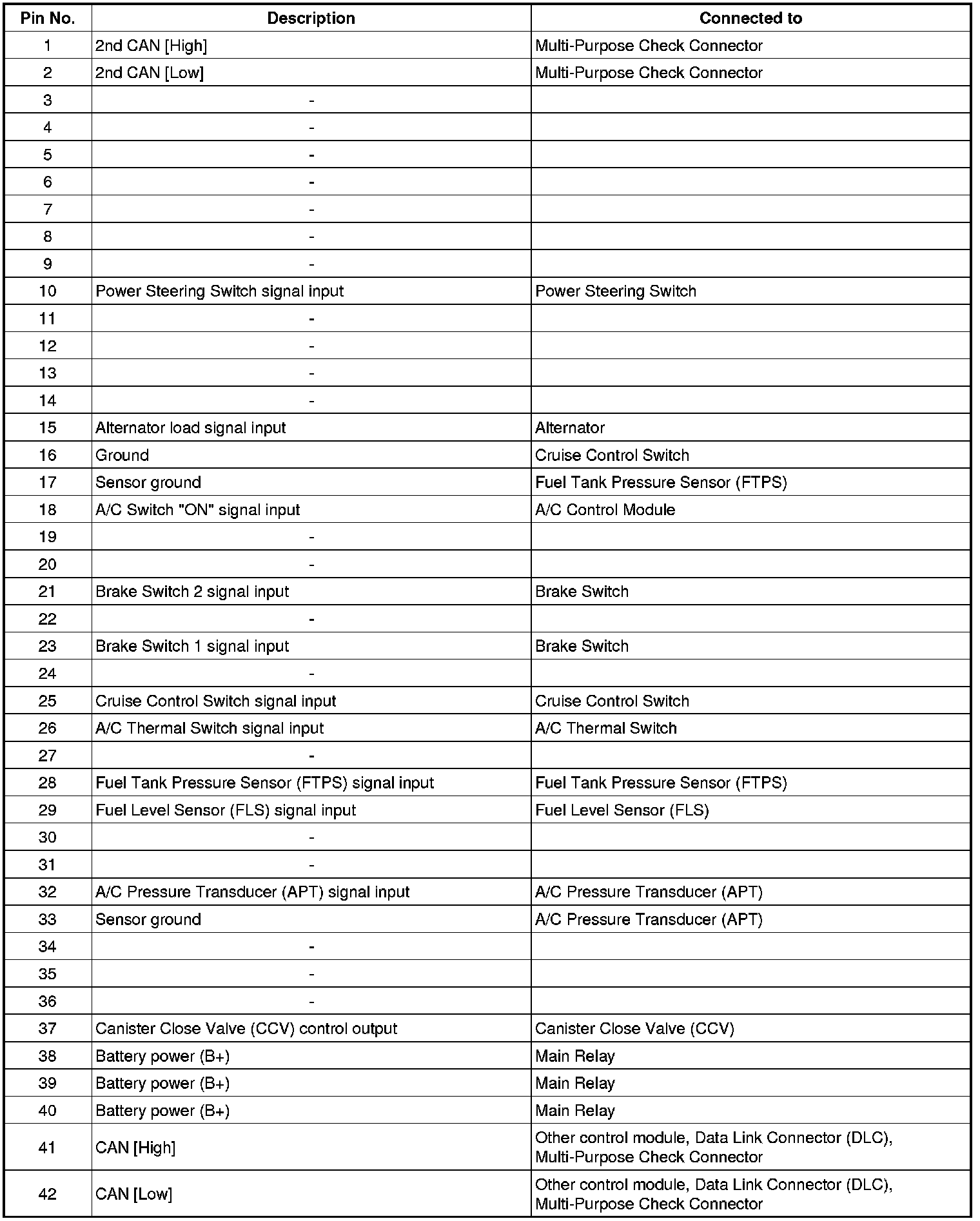

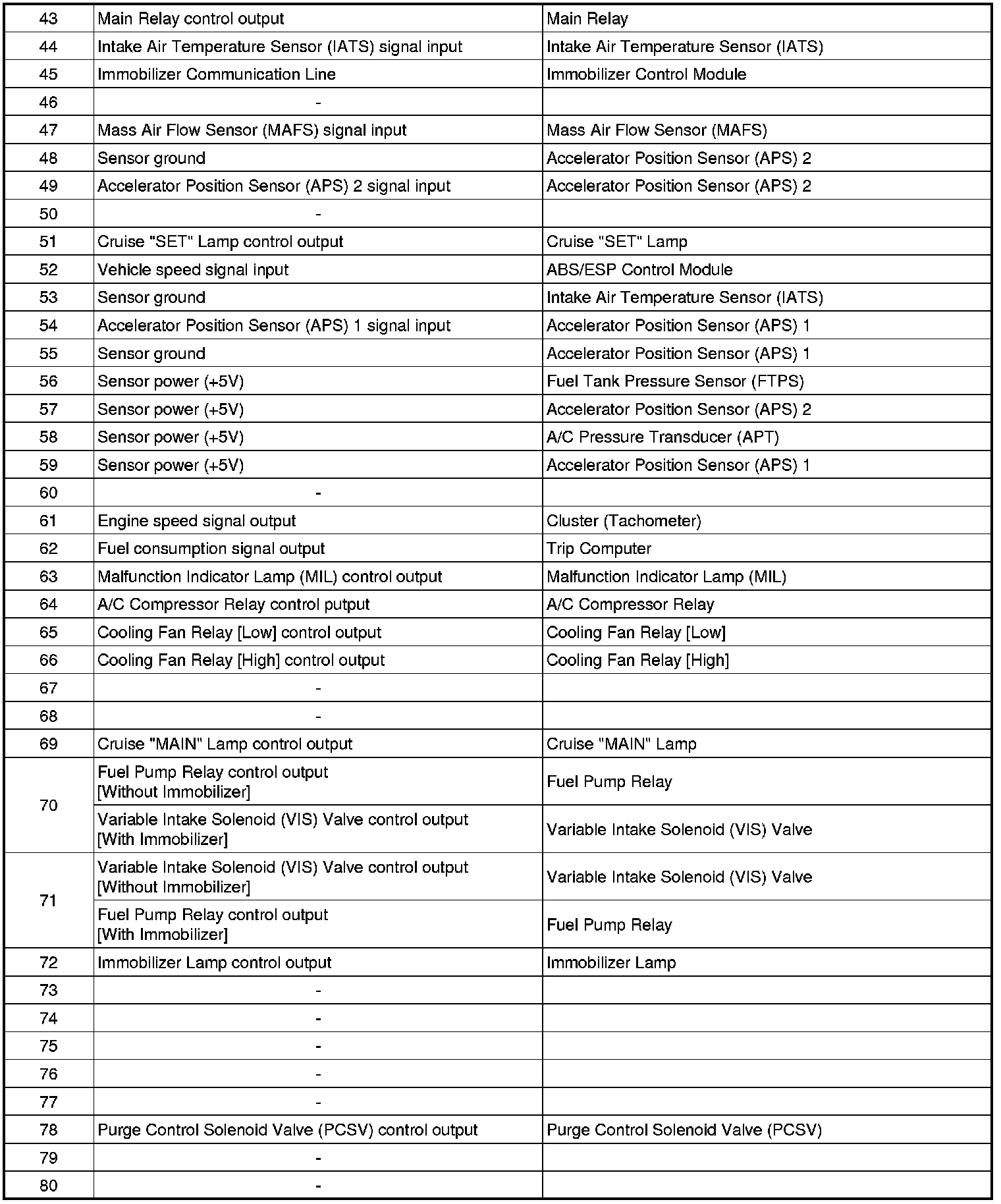

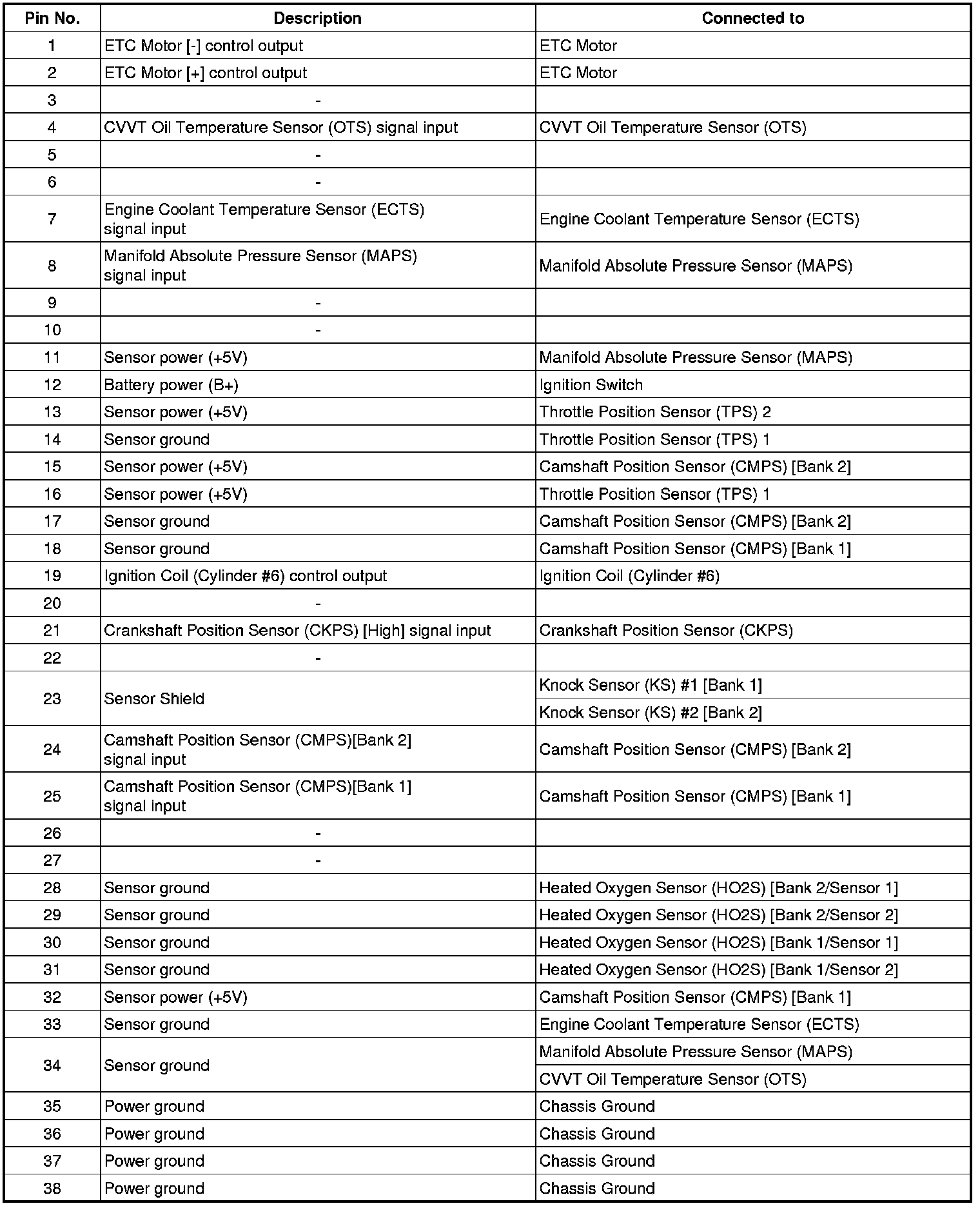

ECM Terminal Function

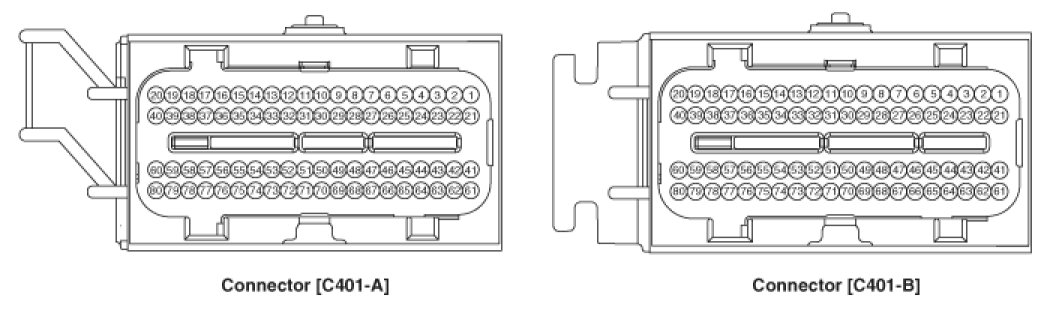

Connector [C401-A]









Connector [C401-B]

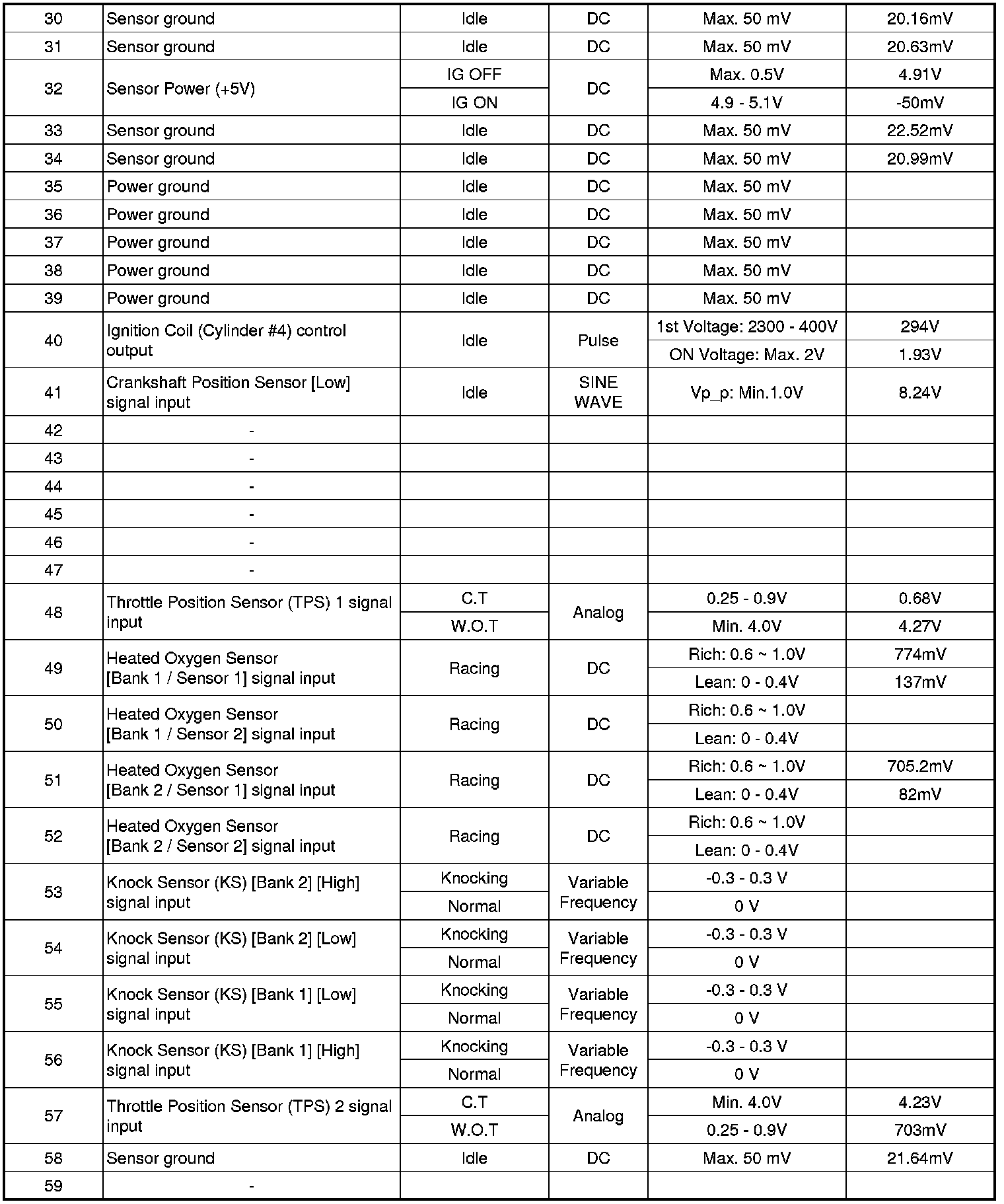

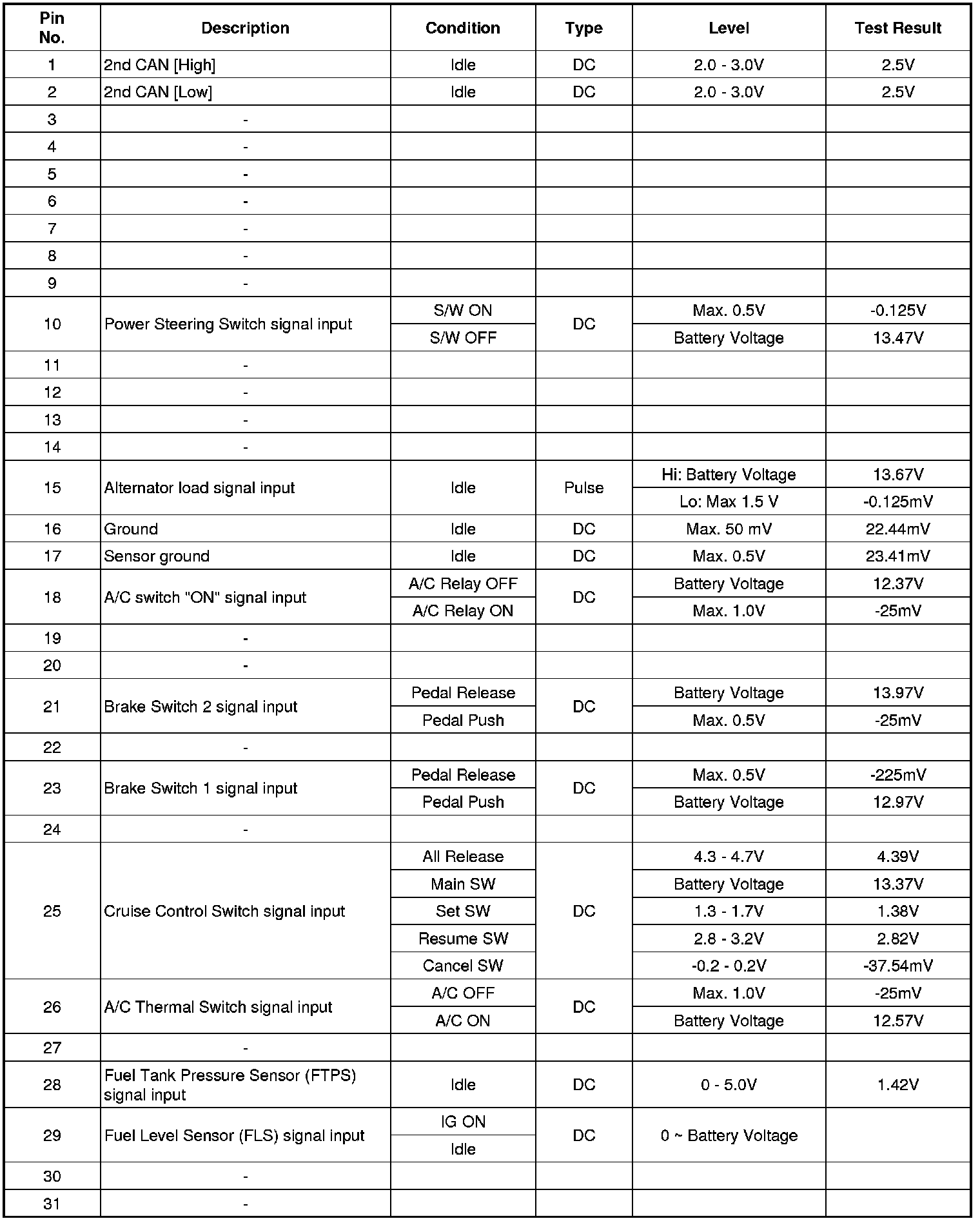

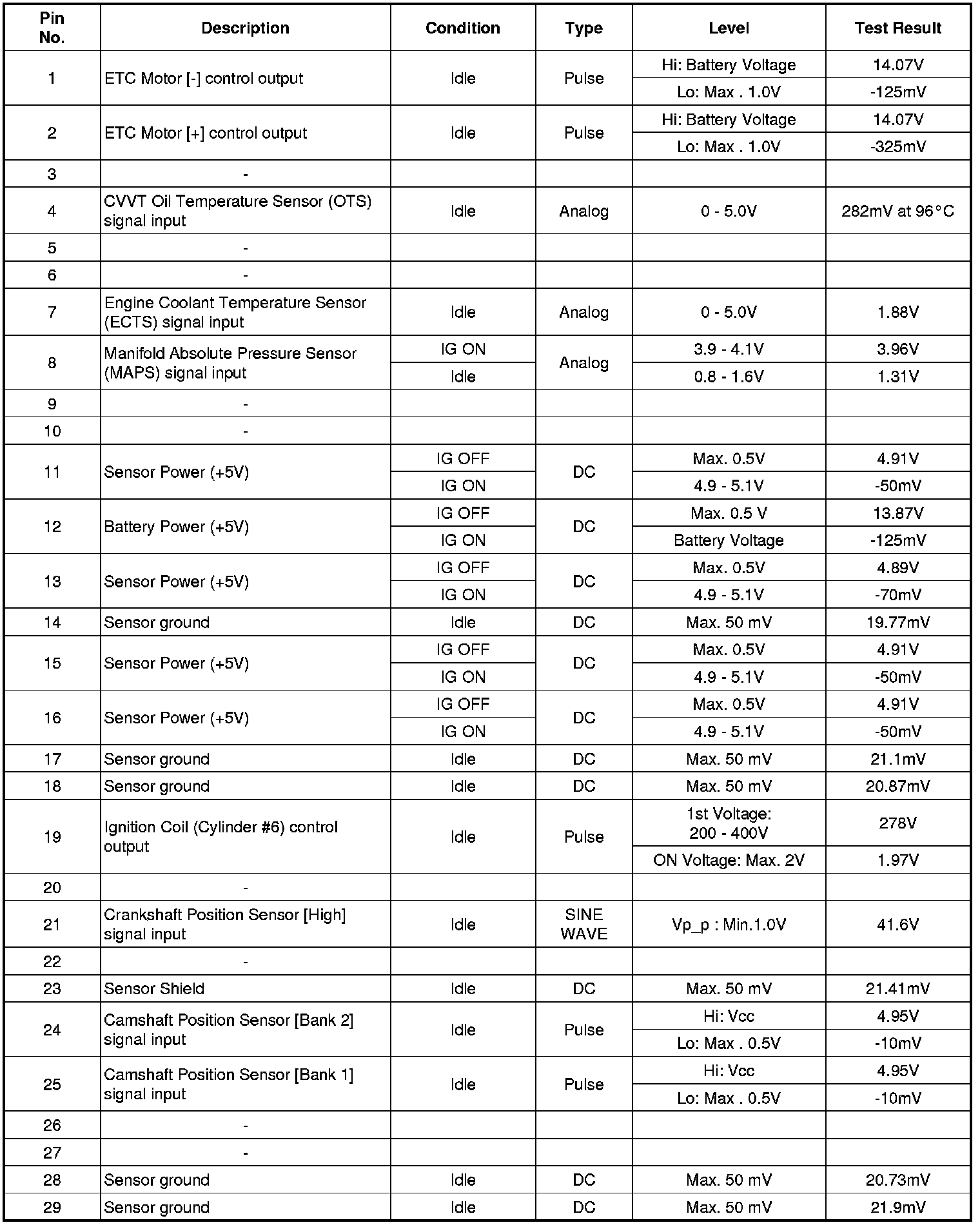

ECM Terminal Input/Output Signal
Connector [C401-A]

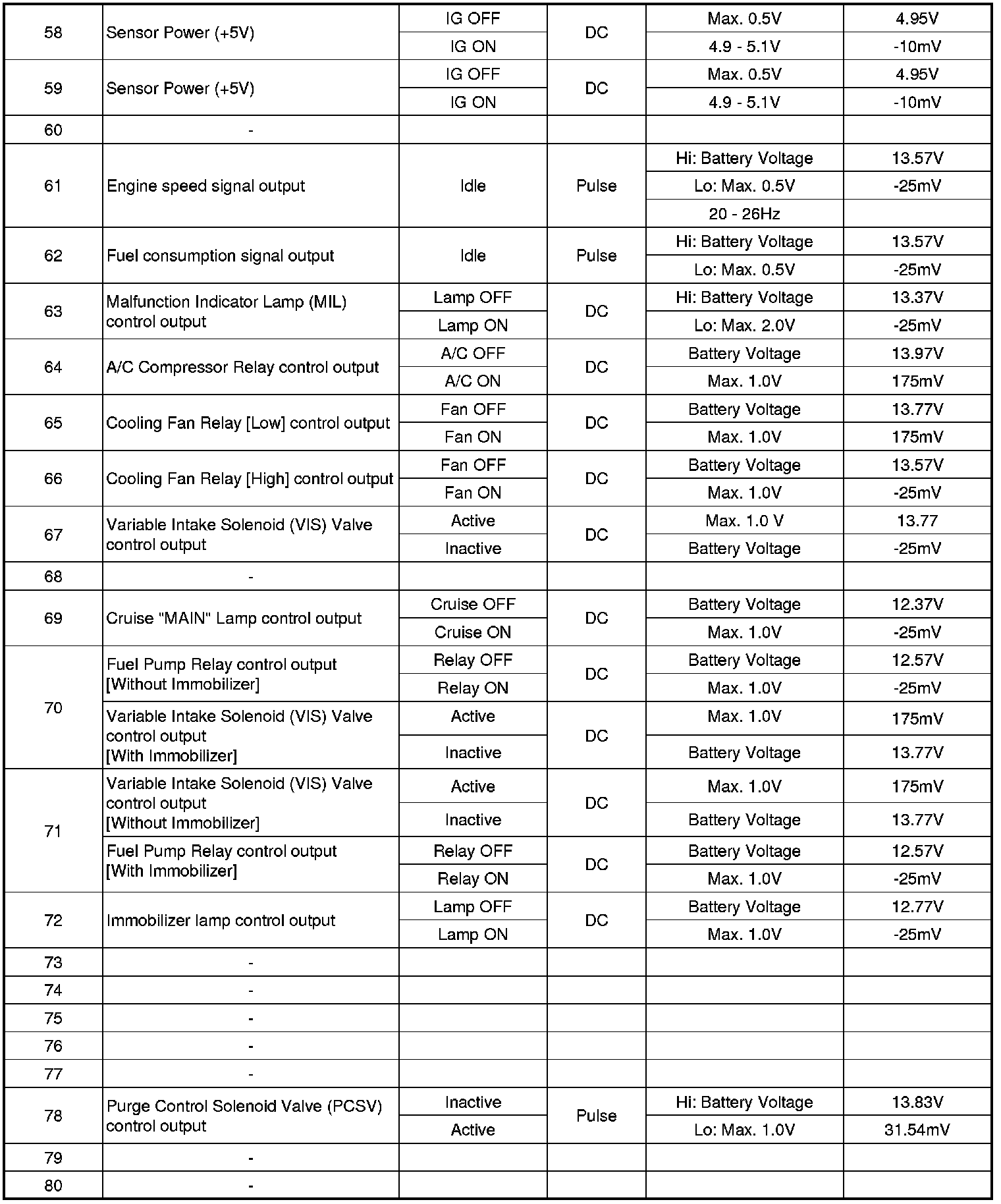

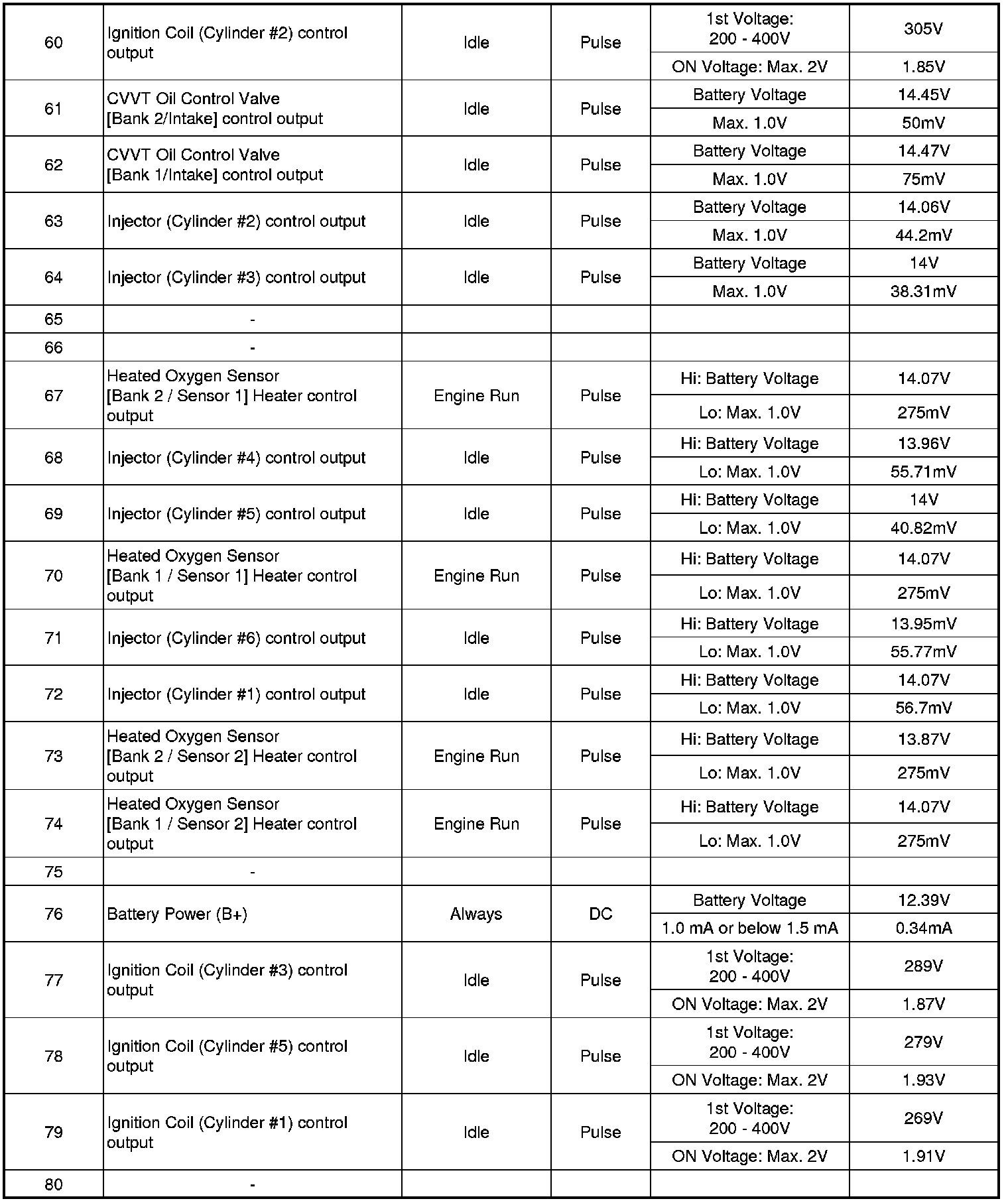

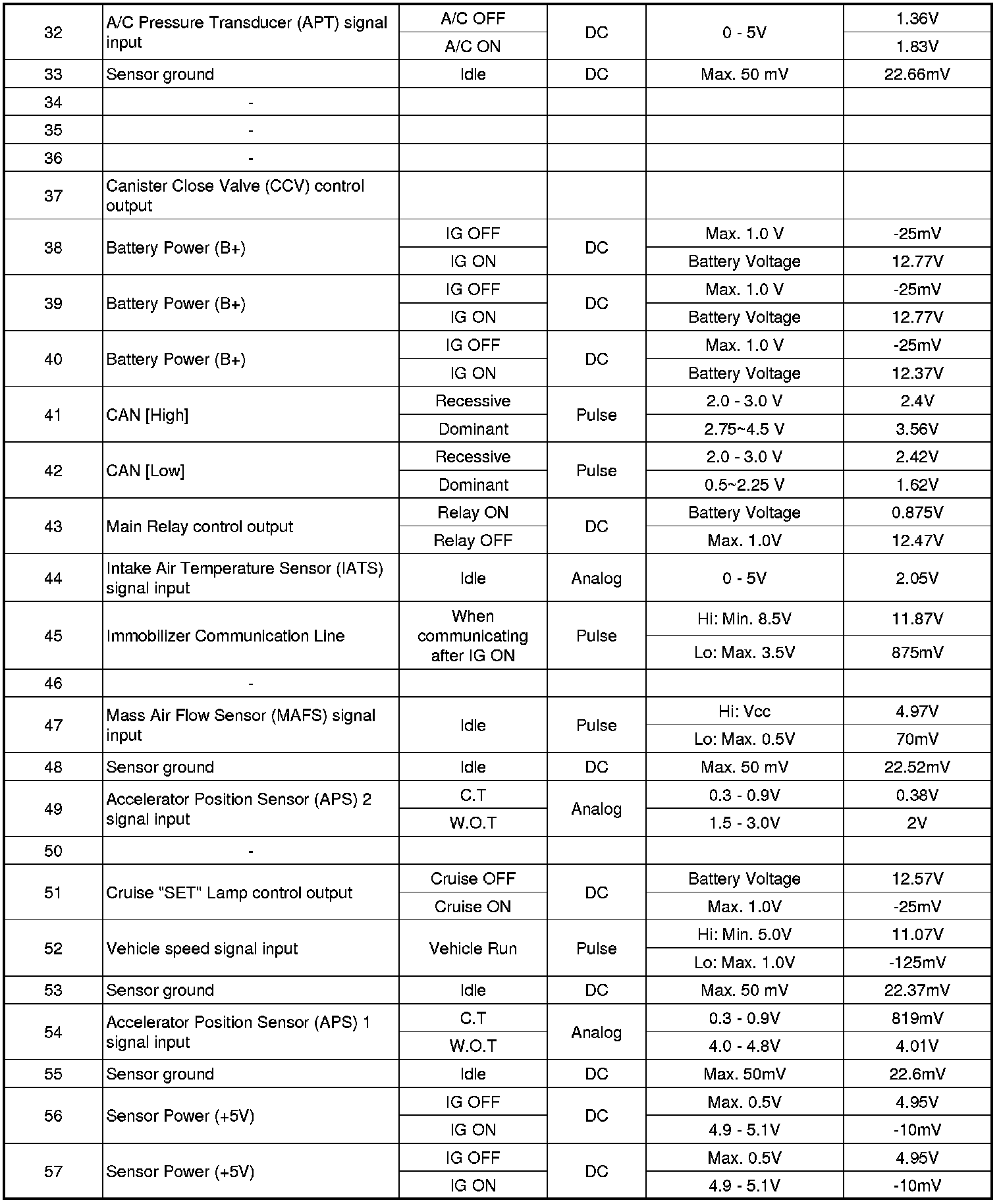

Connector [C401-B]
