Repair Procedures

EXHAUST MANIFOLD ASSEMBLY

1. Remove the under cover(A).




2. Remove the front muffler(A).




3. Disconnect the oxygen sensor connectors(A).








4. Remove the oil level gauge.
5. Remove the heat protector(A).

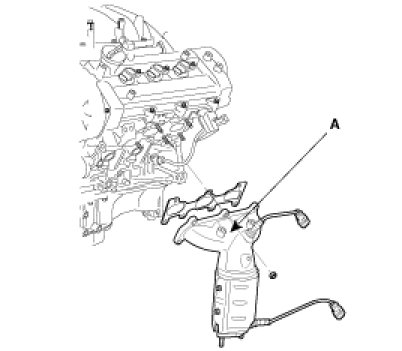

6. Remove the exhaust manifold assembly(A).






EXHAUST MANIFOLD ASSEMBLY

1. Install the exhaust manifold assembly with a new gasket.

Tightening torque
29.4 - 34.3Nm(3.0 - 3.5kgf.m, 21.7 - 25.3lb-ft)


2. Install the heat protector.

Tightening torque
16.7 - 21.6Nm(1.7 - 2.2kgf.m, 12.3 - 15.9lb-ft)


3. Install the front muffler assembly.

Tightening torque
39.2 - 58.8Nm(4.0 - 6.0kgf.m, 28.9 - 43.4lb-ft)


4. Connect the oxygen sensor connector.
5. Install the under cover.
