Luggage / Roof Rack Frame: Service and Repair

REPLACEMENT

ROOF RACK REPLACEMENT

NOTE:
- When prying with a flat-tipped screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Put on gloves to protect your hands.
- Take care not to scratch the body surface.

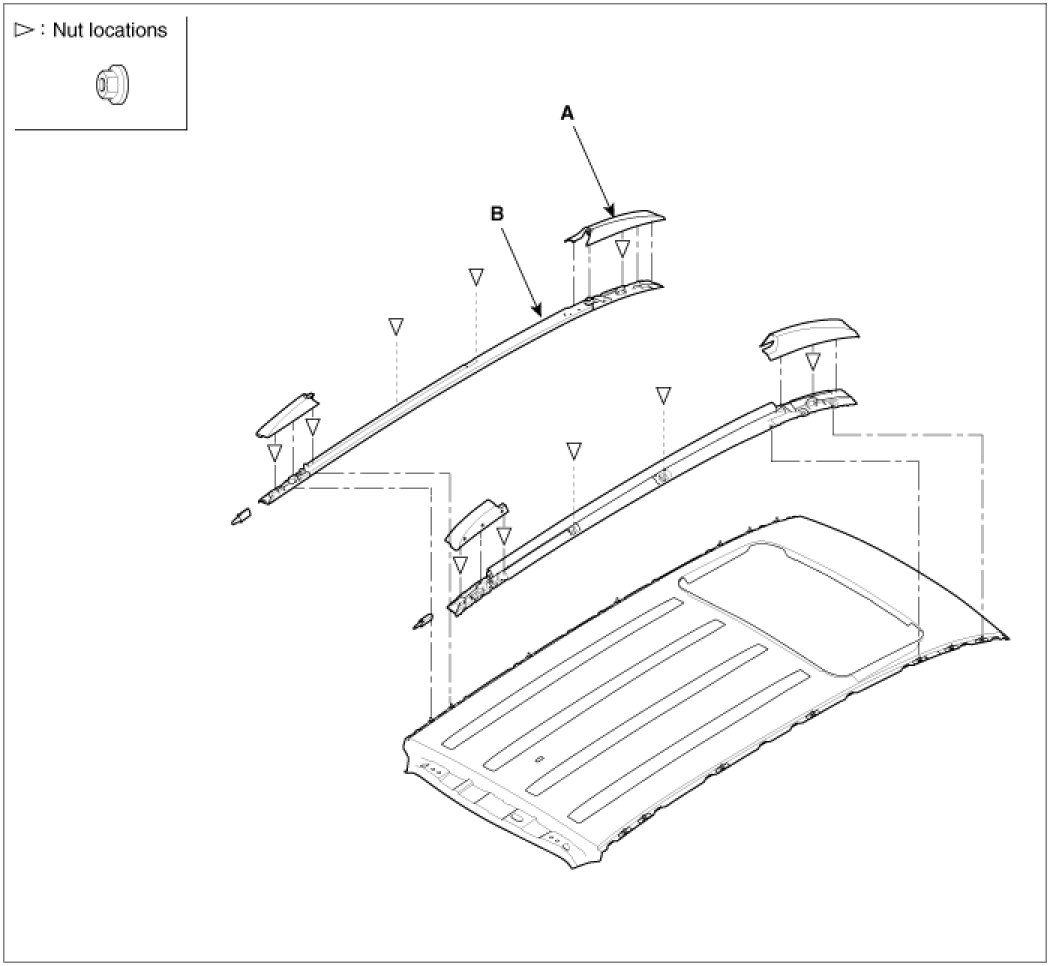

1. Remove the roof rack cover (A).
2. After loosening the mounting nuts, then remove the roof rack (B).
3. Installation is the reverse of removal.
