P2138 Throttle/Pedal Position Sensor/Switch D/E Voltage Correlation - General Information

Component Location





General Description

The Electronic Throttle Control(ETC) system is made of the components throttle body, Throttle Position Sensor(TPS) 1&2 and Accelerator Position Sensor(APS) 1&2. The APS is mounted in the accelerator pedal to detect the opening angle of the accelerator pedal. It has 2 sensors to detect the accelerator position and a malfunction of the accelerator position sensor. The ECM judges the current opening angle of the accelerator pedal from APS1&2, and the ECM controls the throttle motor based on these signals.

DTC Description

Checking output signals from APS 1 and 2 under detecting condition, if output signals difference between APS 1 and 2 are detected more than 4.5% for the specified number of times., PCM sets P2138. And then MIL(Malfunction Indication Lamp) turns on.

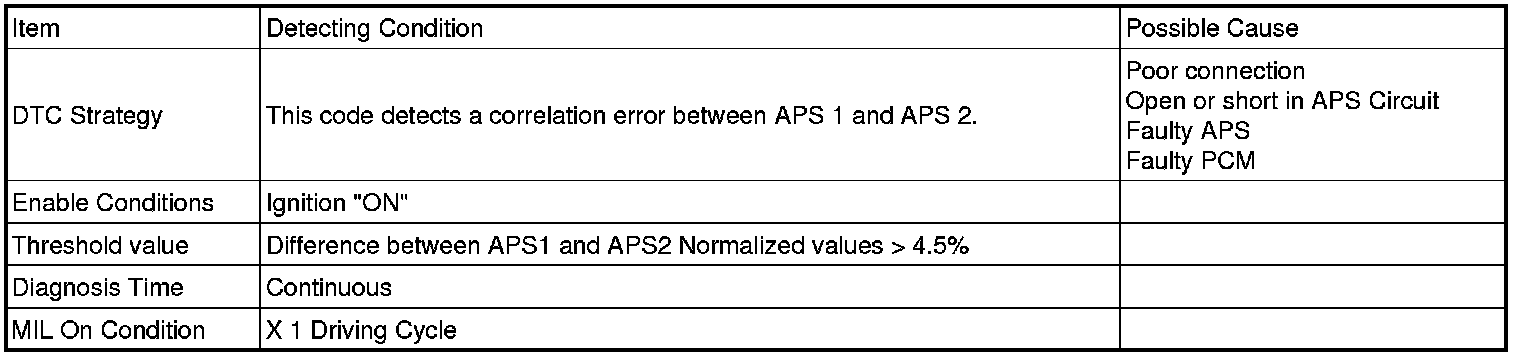

DTC Detecting Condition

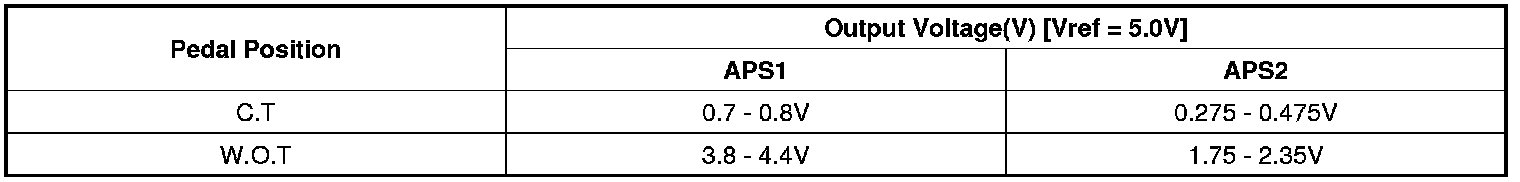

Specification





Schematic Diagram





Signal Waveform
