Component Inspection

Automatic Transaxle
P0885 A/T Control Relay Malfalfunction - Inspection/Repair:_:Component Inspection

Component Inspection

1. Ignition "OFF".
2. Remove "A/T CONTROL RELAY"
3. Measure the resistance between each teminal of the sensor

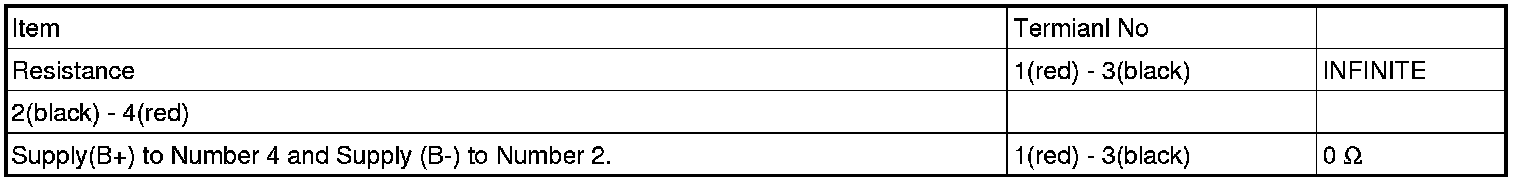

A. Specification:









4. Is resistance with in specification?
YES
1) Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure.
NO
1) Replace ATM CONTROL RELAY as necessary and then go to "Verification of Vehicle Repair" procedure.
