Component Inspection

Engine Control
P0122 Throttle/Pedal Position Sensor/Switch A Circuit Low Input - Inspection/Repair:_:Component Inspection

Component Inspection

1. Check TPS
(1) IG "OFF" and disconnect TPS connector.

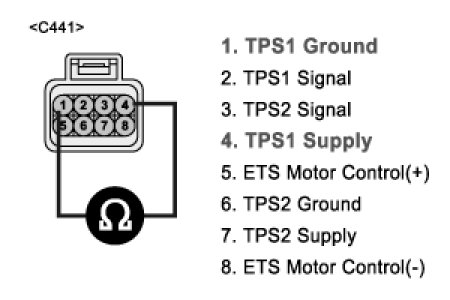

(2) Measure resistance between terminals 4 and 1 of TPS connector.(component side)
A. Specificaton : 4 - 6kOhms




(3) Is the measured resistance within specification?
YES
> Substitute with a known - good PCM and check for proper operation. If the problem is corrected, replace PCM and go to "Verification of Vehicle Repair" procedure.
NO
> Substitute with a known - good ECT motor & TPS and check for proper operation. If the problem is corrected, replace ECT motor & TPS and go to "Verification of Vehicle Repair" procedure.

CAUTION:
Procedure of ETS Initialization
1. Erase the trouble codes on PCM
2. Turn the ignition key off and maintain this condition until the main relay is turned off.(It will take 10sec.)
3. Turn ignition key on more than 1second to record the throttle motor position on the EEPROM
