Front Wiper Motor

REMOVAL

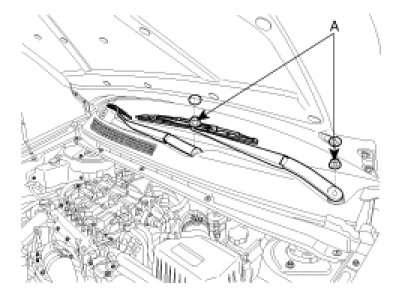

1. Remove the windshield wiper arm and blade after removing a nut (A).

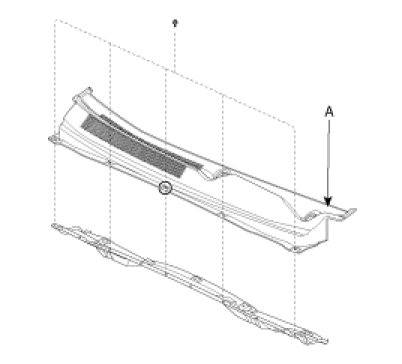

2. Remove the weather strip and the cowl top cover (A) after removing 5 rivets.

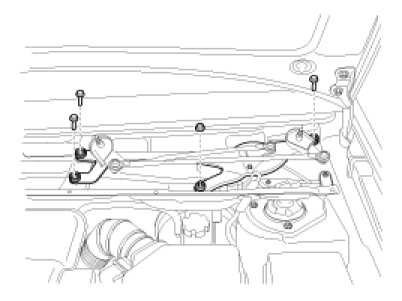

3. Remove the windshield wiper motor and linkage assembly after removing 4 bolts. Disconnect the wiper motor connector from the wiper motor & linkage assembly.






INSTALLATION

1. Install the wiper motor and linkage assembly and then connect the wiper motor connector.

TORQUE : 7-11Nm (0.7-1.1, kgf.m, 5.0-7.9 lbf.ft)


2. Install the cowl top cover.
3. Install the windshield wiper arm and blade.

TORQUE : 28 - 33 Nm (2.8 - 3.3 kgf.m, 20 - 23.8 lbf.ft)
