Repair Procedures

REMOVAL

1. Remove the rear wheel & tire.

CAUTION:
Be careful not to damage the hub bolts when removing the rear wheel & tire.

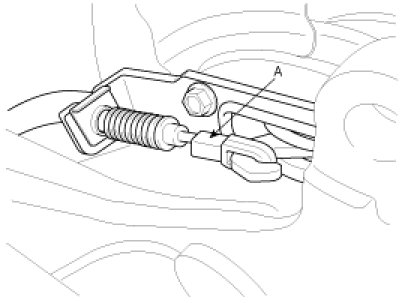

2. Disconnect the parking brake cable (A) with the rear brake assembly.

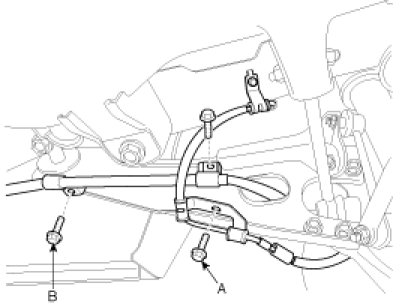

3. Remove the wheel speed sensor and parking brake cable bracket bolts (A, B).

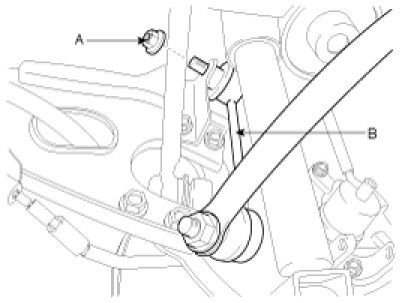

4. Disconnect the rear stabilizer link (B) with the trailing arm by loosening the nut (A).

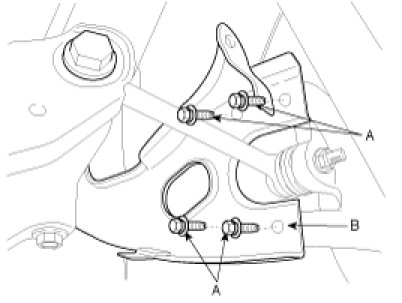

5. Disconnect the trailing arm (B) with the carrier assembly by loosening the mounting bolts (A).

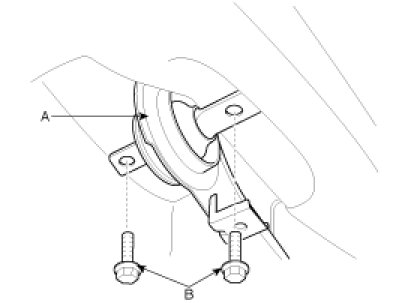

6. Remove the rear trailing arm (A) by loosening the mounting bolt (B).






INSTALLATION

1. Install the rear trailing arm (A) to the body by tightening the mounting bolts (B).

Tightening torque Nm (kgf.m. lb-ft):
140 - 160, (14.0 - 16.0, 101 - 116)





2. Connect the trailing arm (B) with the carrier assembly by tightening the mounting bolts (A).

Tightening torque Nm (kgf.m. lb-ft):
45 - 55, (4.5 - 5.5, 33 - 40)





3. Connect the rear stabilizer link (B) with the trailing arm and tighten the nut (A).

Tightening torque Nm (kgf.m. lb-ft):
45 - 55 (4.5 - 5.5, 33 - 40)





4. Connect the parking brake cable (A) with the rear brake assembly.




5. Install the wheel speed sensor and parking brake cable bracket by tightening the mounting bolts (A, B).




6. Install the rear wheel & tire.

Tightening toque Nm (kgf.m, lb-ft):
90 - 110 (9.0 - 11.0, 65 - 80)


CAUTION:
Be careful not to damage the hub bolts when installing the wheel & tire.
