Repair Procedures

REMOVAL

1. Remove the drive belt.

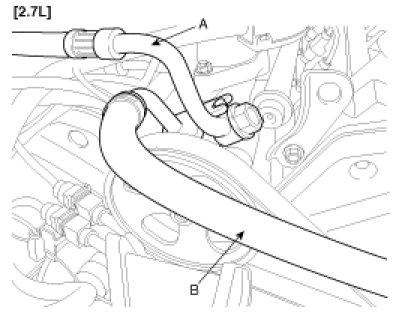

2. Disconnect the pressure tube (A) and return hose (B) from the power steering pump.

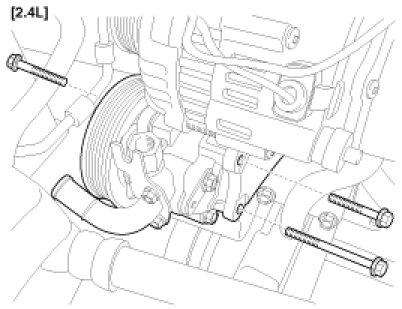

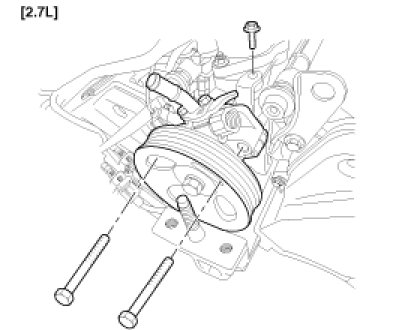

3. Loosen the mounting bolts and then remove the power steering pump.










INSTALLATION

1. Install the power steering pump and tighten the mounting bolts.

Tightening torque Nm (kgf.m, lb-ft):
17 - 26 (1.7 - 2.6, 12 - 19)






Tightening torque Nm (kgf.m, lb-ft):
35 - 50 (3.5 - 5.0, 25 - 36)





2. Connect the suction hose (B) with suction pipe.

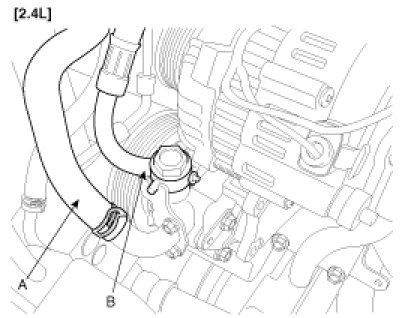

3. Connect the pressure tube (A) to power steering pump by tightening the eye bolt.

Tightening torque Nm (kgf.m, lb-ft):
55 - 65 (5.5 - 6.5, 36 - 47)









4. Install the drive belt.
5. Add power steering fluid to reservoir.
6. Bleed the power steering system.
7. Check power steering pump relief pressure.
