Keyless Entry and Burglar Alarm

INSPECTION

FRONT DOOR LOCK SWITCH
1. Remove the front door trim.

2. Remove the front door module.
.

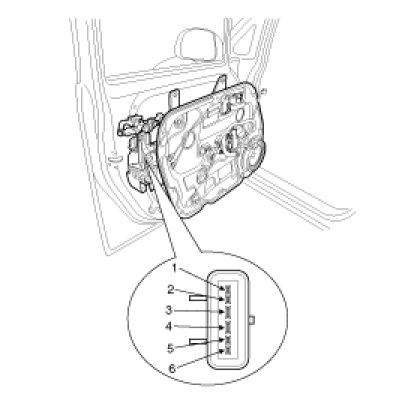

3. Disconnect the connectors (6P) from the actuator.

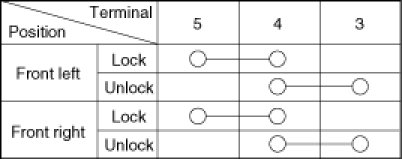

4. Check for continuity between the terminals in each switch position when inserting the key into the door according to the table.





REAR DOOR LOCK SWITCH
1. Remove the rear door trim.

2. Remove the rear door module.

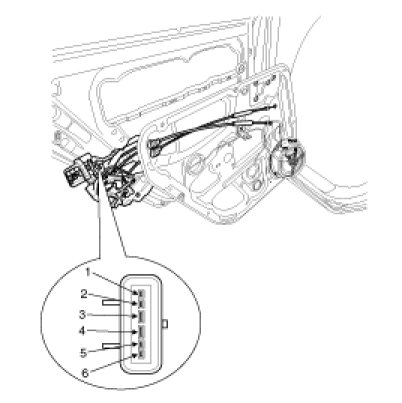

3. Disconnect the connectors (6P) from the actuator.

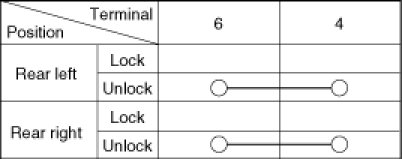

4. Check for continuity between the terminals in each switch position according to the table.
