Home >> Kia >> 2010 >> Rondo L4-2.4L >> Repair and Diagnosis >> Powertrain Management >> Sensors and Switches - Powertrain Management >> Sensors and Switches - Computers and Control Systems >> Manifold Pressure/Vacuum Sensor >> Specifications >> Fuel System

Fuel System

Specifications

Sensors

Manifold Absolute Pressure Sensor (MAPS)
- Type: Piezo-resistive pressure sensor type

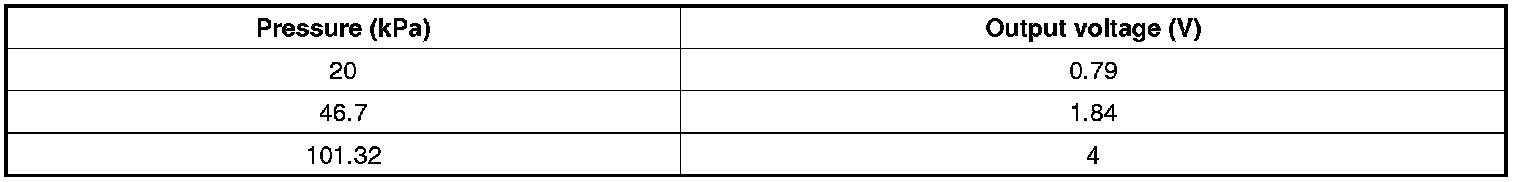

- Specification
