Center Mounted Brake Lamp: Service and Repair

HIGH MOUNTED STOP LAMP

REMOVAL

1. Disconnect the negative(-) battery terminal.
2. Open the tail gate and remove the spoiler.

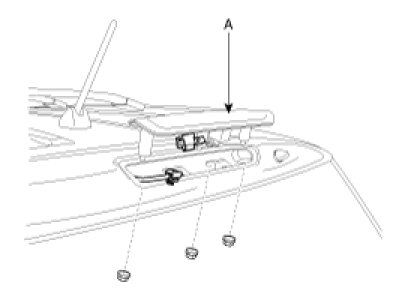

3. Remove mounting nuts(3EA). And then remove the high mounted stop lamp(A).






INSTALLATION

1. Install the room lamp assembly after connecting the lamp connector.
2. Install the lamp lens after assembling the bulb.
