Removal and Replacement

Removal

1. Remove the engine cover (A).




2. Recovering refrigerant.
3. Remove the air duct (A).




4. Disconnect the negative terminal first, then the positive terminal.

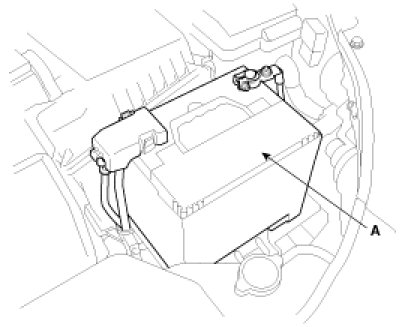

Remove the battery (A).

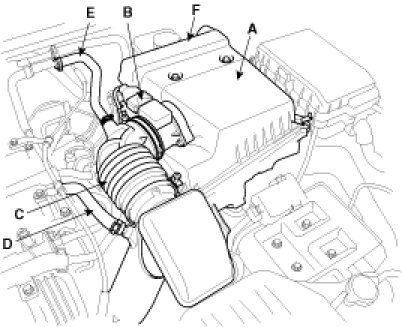

5. Remove the intake air hose and air cleaner assembly.

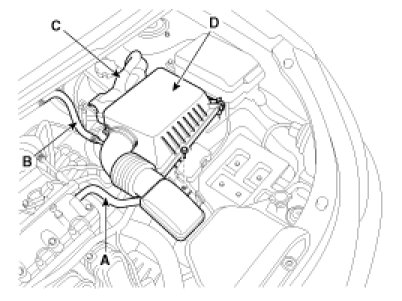

(1) Disconnect the breather hose (A) and vacuum hose (B) from air cleaner hose.
(2) Disconnect the ECM connector (C).
(3) Remove the intake air hose and air cleaner assembly (D).

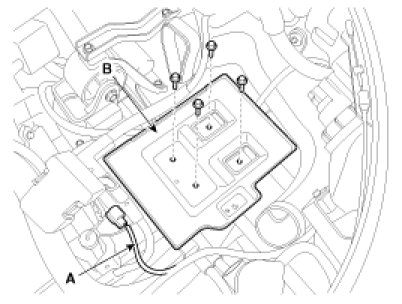

6. Disconnect the connector (A) and remove the battery tray (B).




7. Remove under cover (A).




8. Drain the engine coolant.
Remove the radiator cap to speed draining.
9. Remove the upper radiator hose (A) and lower radiator hose (B).




10. Disconnect the engine room junction box connectors.

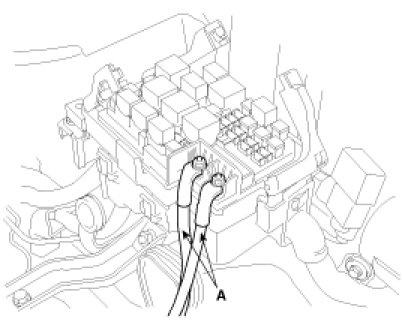

(1) Disconnect the terminals (A).

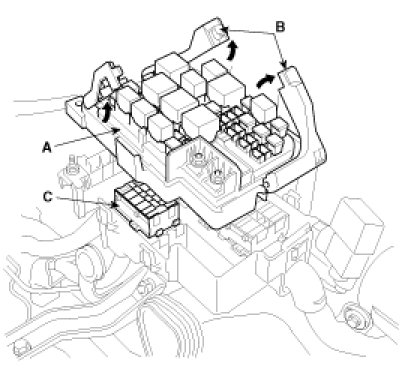

(2) Turn over the levers (B) and remove the fuse and relay assembly (A) by disconnecting the connectors (C).

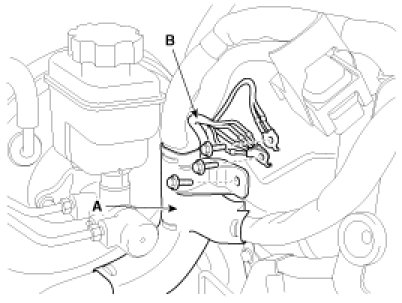

(3) Remove the engine harness protector (A) and the ground line (B).

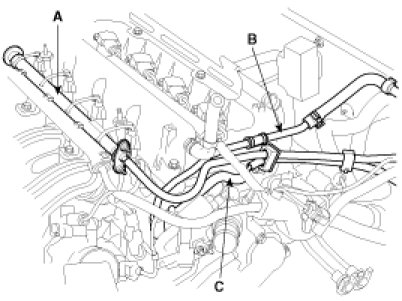

11. Remove delivery pipe (A), brake vacuum hose (B), and PCSV hose (C).

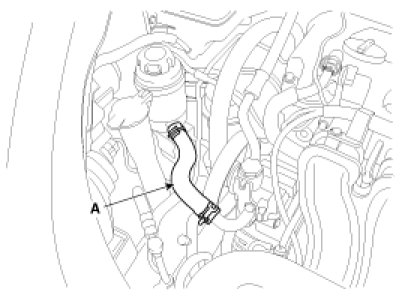

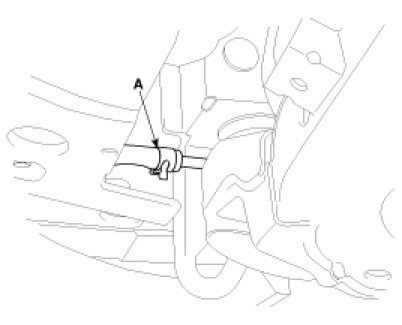

12. Remove the heater hoses (A).




13. Disconnect the transaxle wire harness connector and control cable. (A/T)
(1) Disconnect the ground line from the transaxle.
(2) Remove the transaxle oil hoses.
(3) Remove the shift cable assembly.
14. Remove the steering u-joint mounting bolt.
15. Remove the power steering oil hose (A).




16. Disconnect the ground line (A) and remove the engine mounting bracket (B).




17. Remove the air conditioning compressor pipe.
18. Remove the transaxle mounting bracket.
19. Remove the front tires.
20. Remove the tie rod end nuts after removing the cotter pins.
21. Remove the stabilizer bar link nuts.
22. Remove the lower arm mounting bolts.
23. Remove the drive shaft cover and the heat protector.

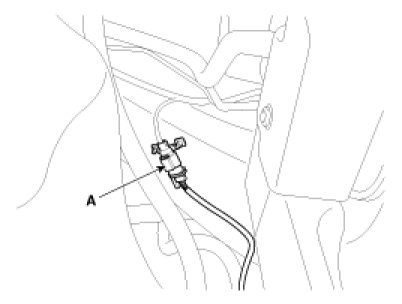

24. Disconnect the HO2S (Bank 1 / Sensor 1) connector (A) (ULEV only).

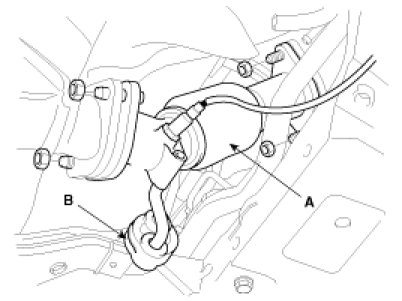

25. Remove the exhaust pipe (A) and the hanger (B).




26. Remove power steering return hose (A) and drain power steering oil.

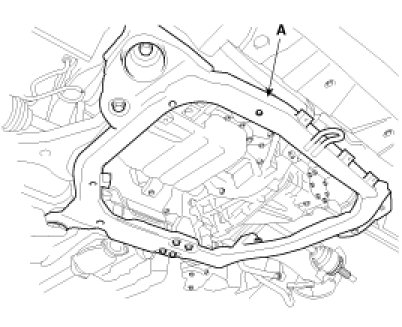

27. Install a jack and remove sub-frame (A) with the engine and transaxle assembly.




28. Remove drive shaft from transaxle.
29. Separate then engine from the transaxle assembly by loosering mooting bolts.

CAUTION:
When remove the engine and transaxle assembly, be careful not to damage any surrounding parts or body components.

Installation

Installation is in the reverse order of removal.

Perform the followings :
- Adjust a shift cable.
- Adjust a throttle cable.
- Refill engine with engine oil.
- Refill a transaxle with fluid.
- Refill a radiator and a reservoir tank with engine coolant.
- Place a heater control knob on "HOT" position.
- Bleed air from the cooling system.
- Start engine and let it run until it warms up. (until the radiator fan operates 3 or 4 times.)
- Turn Off the engine. Check the level in the radiator, add coolant if needed. This will allow trapped air to be removed from the cooling system.
- Put radiator cap on tightly, then run the engine again and check for leaks.
- Clean battery posts and cable terminals with sandpaper assemble them, then apply grease to prevent corrosion.
- Inspect for fuel leakage.
- After assemble the fuel line, turn on the ignition switch (do not operate the starter) so that the fuel pump runs for approximately two seconds and fuel line pressurizes.
- Repeat this operation two or three times, then check for fuel leakage at any point in the fuel line.
