FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM: Car repair manuals for everyone.
Home >> Kia >> 2010 >> Rondo L4-2.4L >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinout Values and Diagnostic Parameters >> ABS(Anti-Lock Brake System)

ABS(Anti-Lock Brake System)

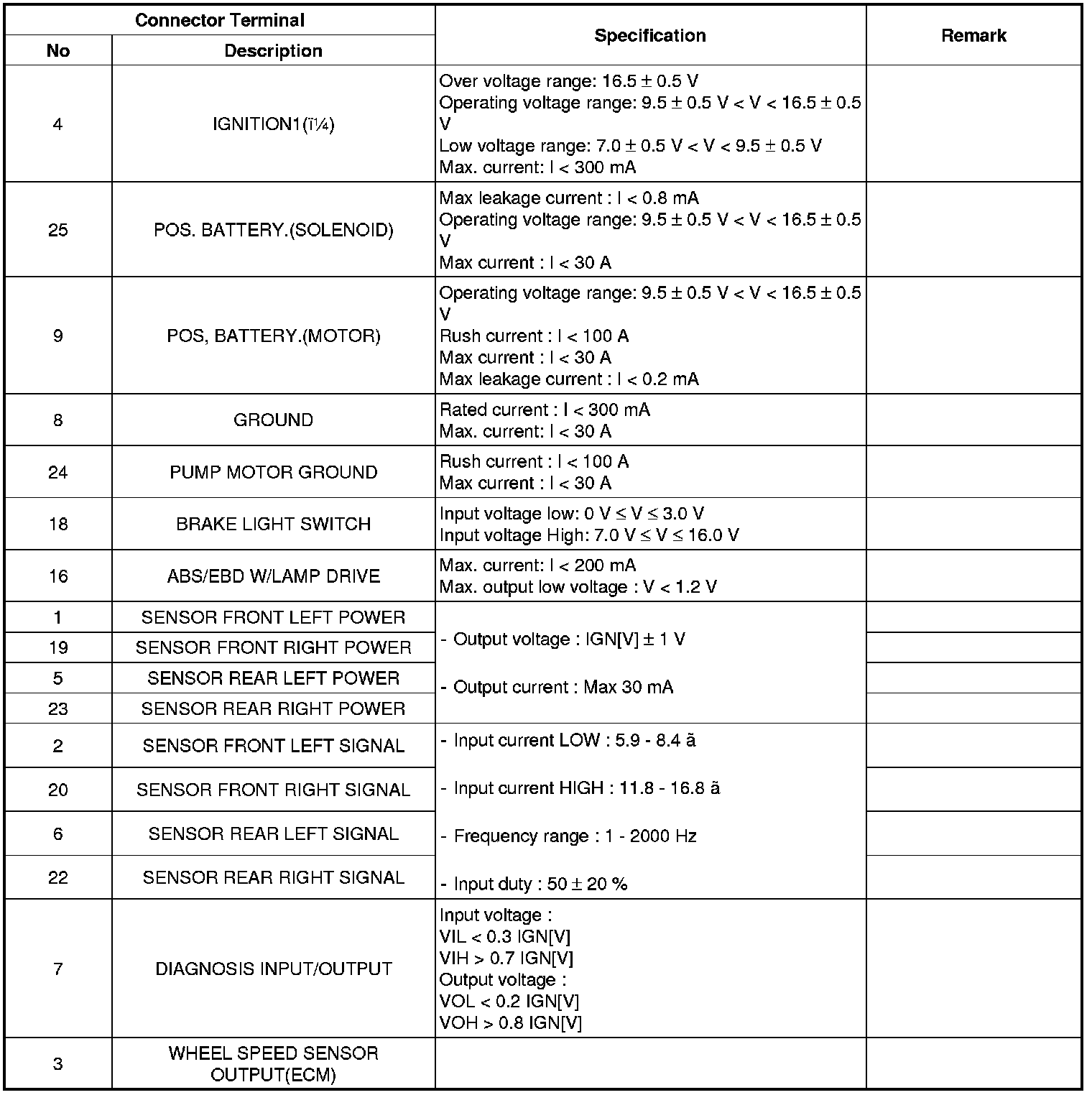

ABS CONNECTOR INPUT/OUTPUT
