Spoiler: Service and Repair

REPLACEMENT

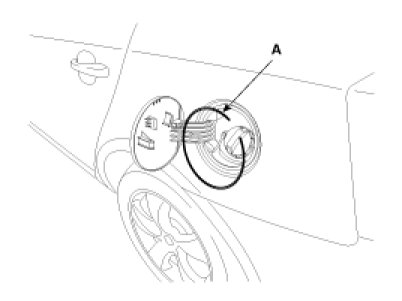

1. Remove the ring (A).

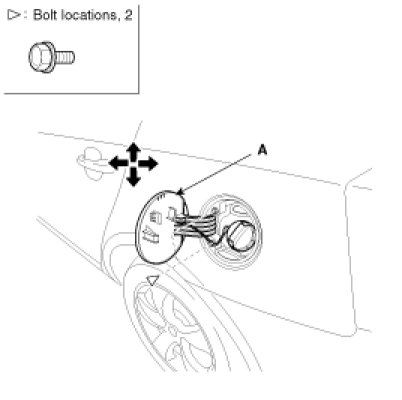

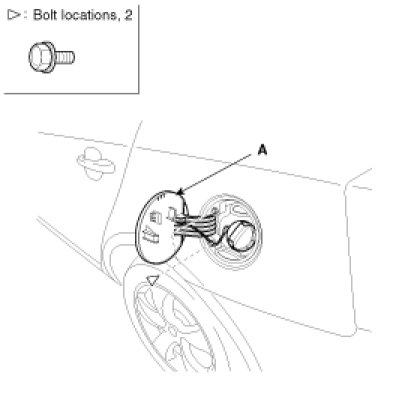

2. Loosen the bolts, then remove the fuel filler door (A).




3. Installation is the reverse of removal.

NOTE:
- Make sure the fuel fill door opens properly and locks securely.
- Check that the fuel fill door (A) fit flush against the body. If necessary, adjust it.
