Rear Seat

SECONDARY SEAT

(RH)

SEAT CUSHION COVER REPLACEMENT
1. Remove the clip (B).

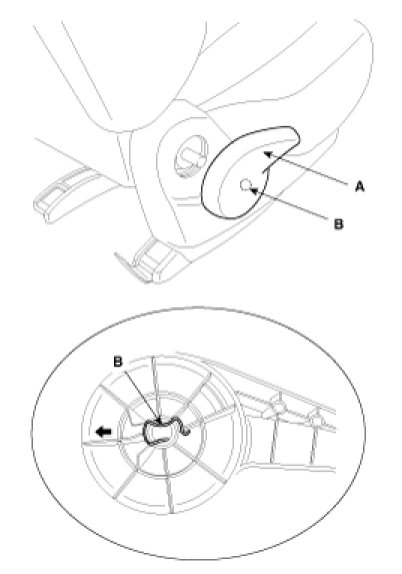

2. Remove the recliner lever (A).

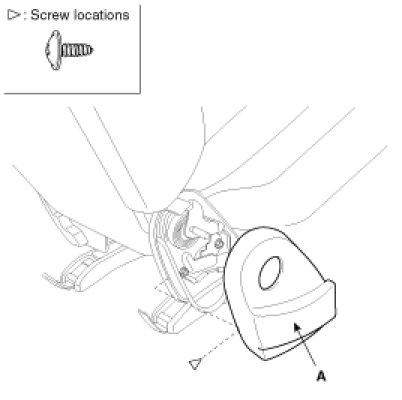

3. After loosening the mounting screw, then remove the cover (A).

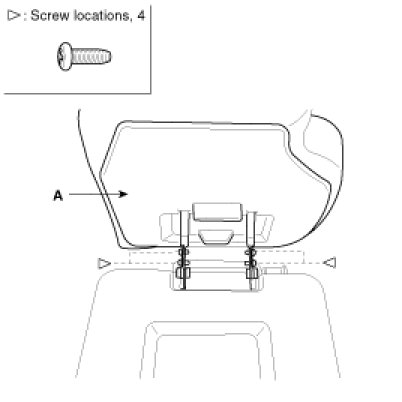

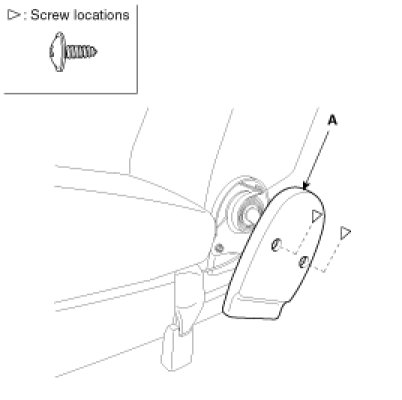

4. After loosening the mounting screws, then remove the recliner cover (A).

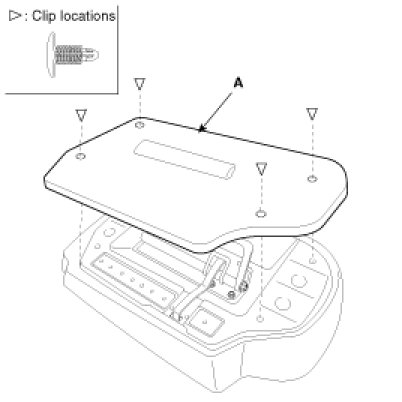

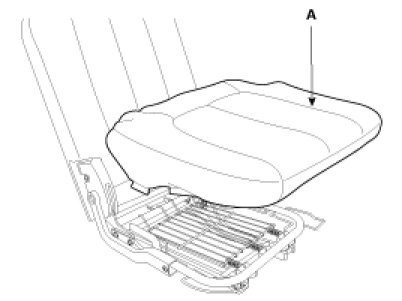

5. After loosening mounting screws, then remove the seat cushion assembly (A).

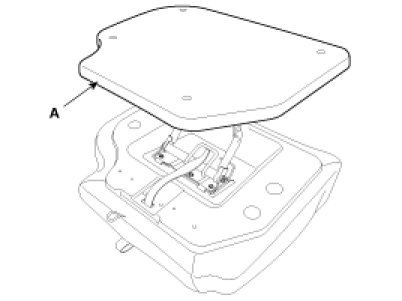

6. Remove the cover (A).

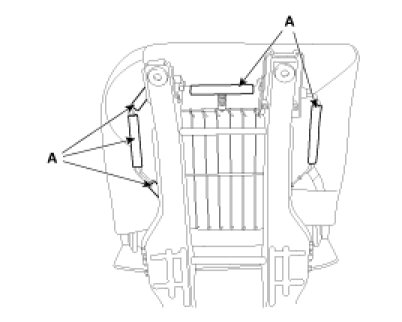

7. Disconnect the protector (A) and remove the panel (B).

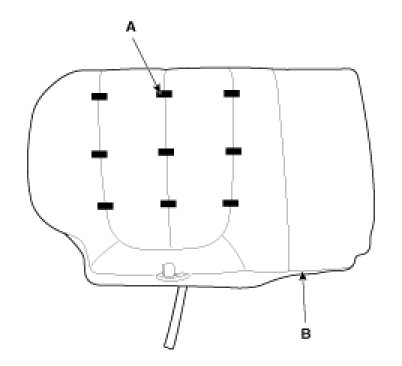

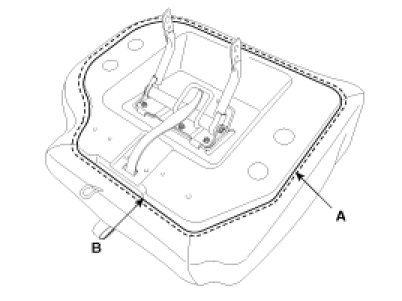

8. Disconnect the adhesives (A) on the front of seat cushion, remove the seat cushion cover (B).




9. Installation is the reverse of removal.

LH

SEAT CUSHION COVER REPLACEMENT

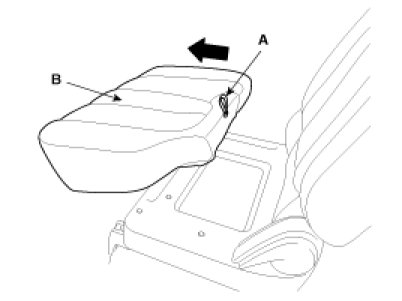

1. After puling the ribbon (A) remove the seat cushion (B).




2. After loosening mounting screws, then remove the seat cushion assembly (A).




3. Remove the panel (A).




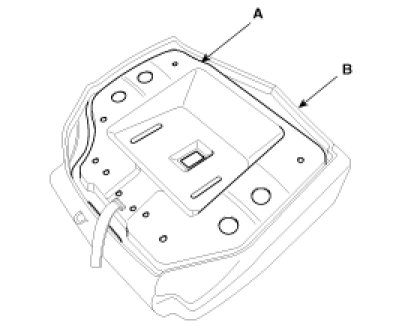

4. Disconnect the protector (B) and remove the panel (A).

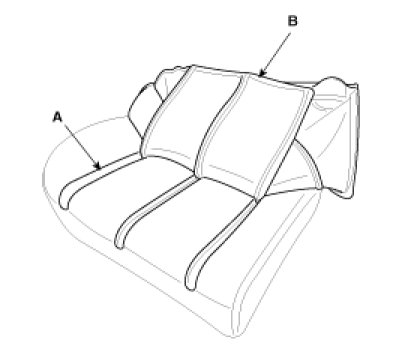

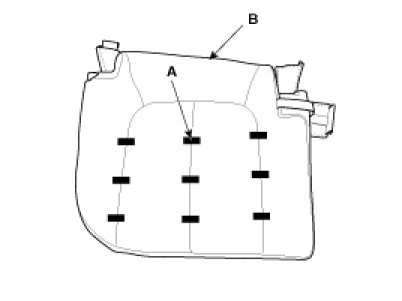

5. After removing the hogring clip (A) on the front of seat cushion and remove the seat cushion cover (B).





SEAT CUSHION COVER REPLACEMENT
1. Remove the third seat assembly.
2. Disconnect the protector (A).




3. Remove the seat cushion (A).




4. After removing the hogring clip (A) on the front of seat cushion and remove the seat cushion cover (B).




5. Installation is the reverse of removal.
