Mirror

REPLACEMENT

NOTE:
- When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Put on gloves to protect your hands.

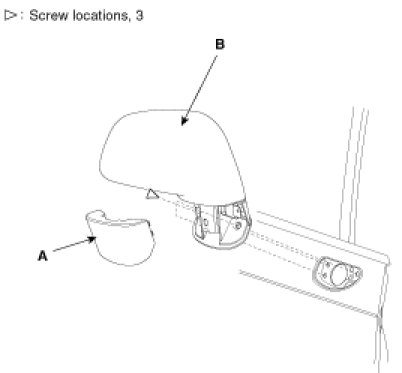

1. Remove the cover (A)
2. After loosening the mounting bolts, then remove the outside rear view mirror (B).
3. After disconnecting the connector (A), remove the outside rear view mirror (B).




4. Installation is the reverse of removal.

INSIDE REAR VIEW MIRROR REPLACEMENT

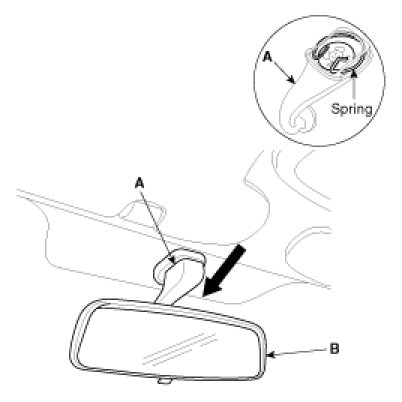

1. Push the inside rear view mirror base (A) down to wards the inside rear view mirror assembly (B).




2. Installation is the reverse of removal.

ECM MIRROR REPLACEMENT
1. Remove the ECM mirror cover (A).




2. Remove the cover and connector (A).
3. Push the ECM mirror base down to remove the ECM mirror assembly (B).




4. Installation is the reverse of removal.
