Repair Procedures

REPLACEMENT

NOTE:
- When prying with a screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Take care not to scratch the crash pad and related parts.

1. Tilt the steering column down.

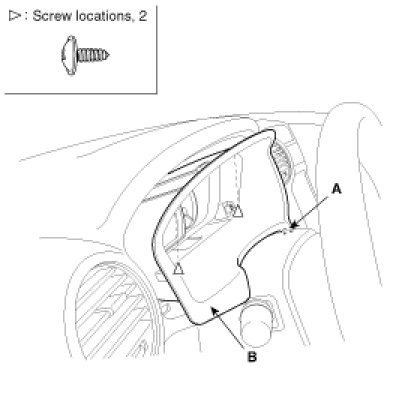

2. After disconnecting the trip sensor connector (A), remove the cluster facia panel (B).




3. After loosening the mounting screws, then remove the cluster facia (A).




4. Installation is the reverse the removal.

NOTE:
Make sure the connector is plugged in properly.
