Amplifier: Service and Repair

EXTERNAL AMPLIFIER

REMOVAL

1. Remove the drive seat after disconnecting the connector
.

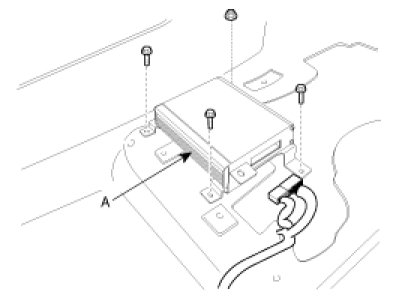

2. Remove the external amplifier (A) after loosening the 3 bolts and a nut.






INSTALLATION

1. Install the external amplifier and connect the external amplifier connector.
2. Install the drive seat.
