Front Door Window Motor: Service and Repair

REPLACEMENT

POWER WINDOW MOTOR REPLACEMENT
1. Remove the front door trim.
2. Remove the door regulator.

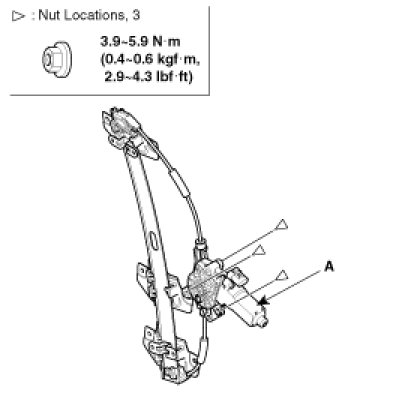

3. Remove the window motor(A).




4. Installation is the reverse of removal.

NOTE:
- Roll the glass up down to see if it move freely without binding.
