Standard Hydraulic Pressure Test

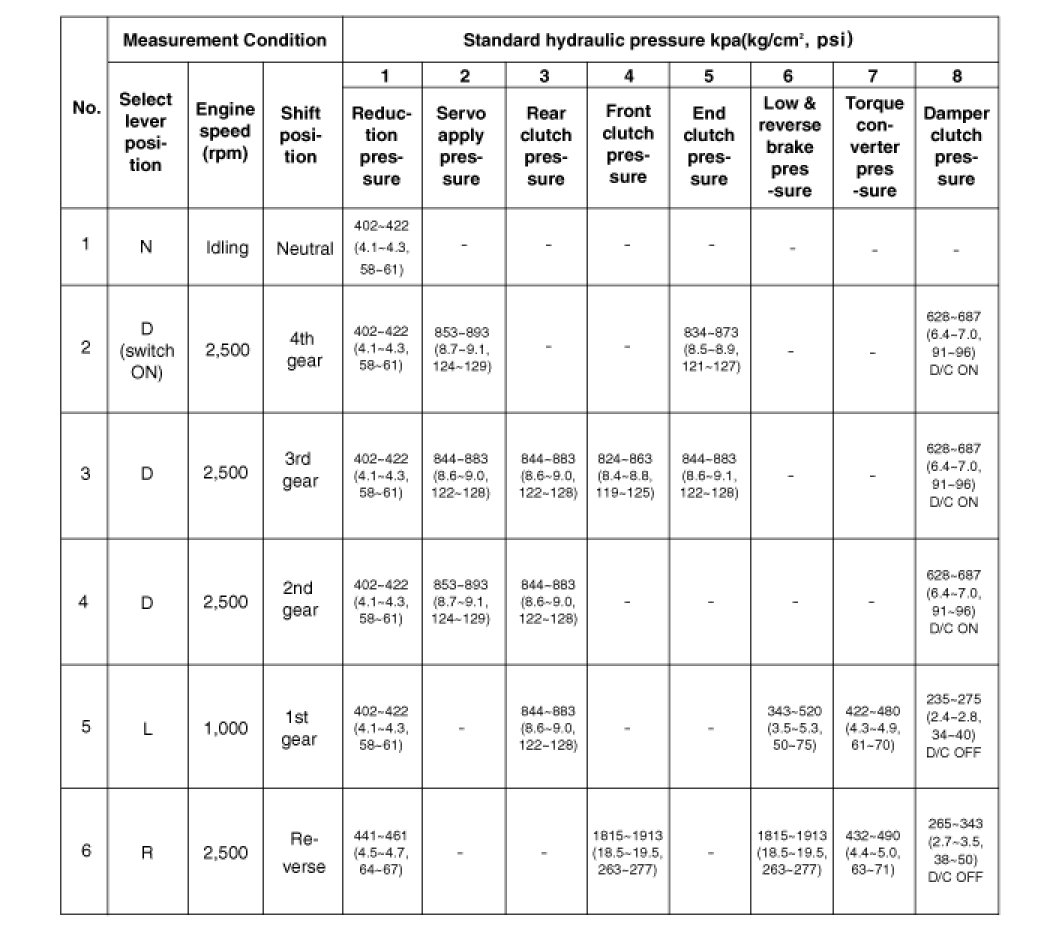

STANDARD HYDRAULIC PRESSURE TEST





NOTE:
- "-" is 0.2(0.3)kg/cm2 or less and "( )" is the reverse.
- SW-ON : Turn the overdrive control switch ON.
- SW-OFF : Turn the overdrive control switch OFF.
- The hydraulic pressure may be more than standard value at the ambient temperature.

DRIVE SHAFT OIL SEALS REPLACEMENT
1. Disconnect the drive shaft from the transaxle.

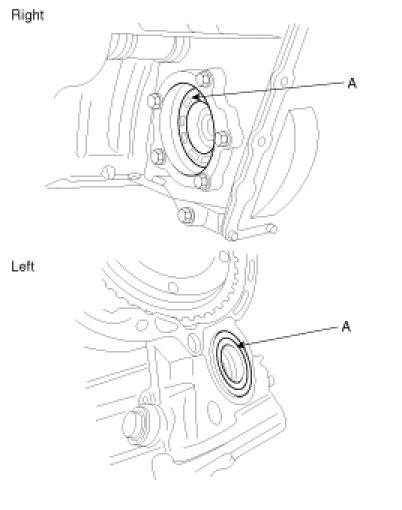

2. Using a flat-tip (-) screwdriver, remove the oil seal(A).




3. Apply a coating of the transaxle fluid to the lip of the oil seal.

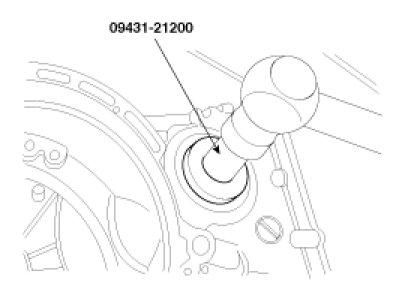

4. Using the special tool (09431-21200), tap the drive shaft oil seal into the transaxle.
