Repair Procedures (A4AF3)

Removal

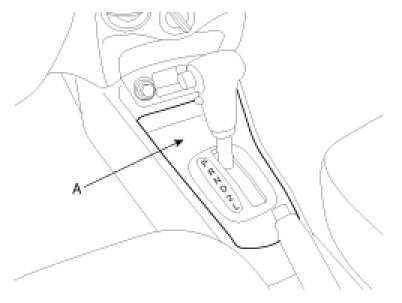

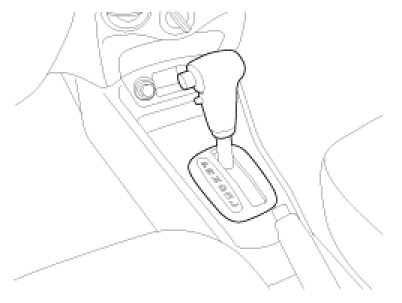

1. Remove the center console cover(A).

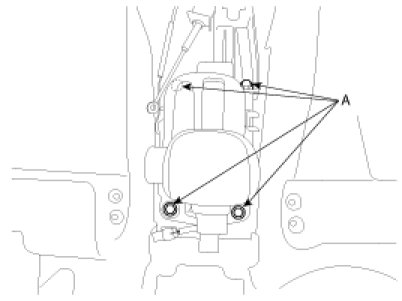

2. Remove the center console mounting bolt(A) and screw(4EA) and remove the center console.

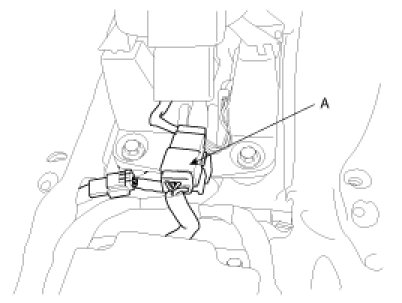

3. Disconnect lever assembly electrical connector(A).

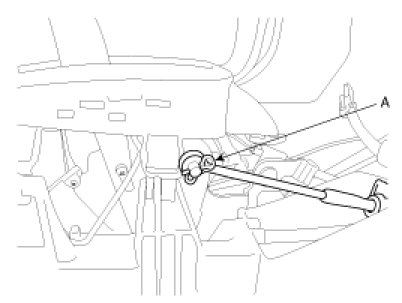

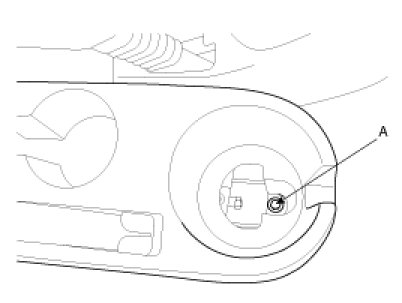

4. Remove the control cable cotter pin(A).




5. Remove control cable hold (lever side).

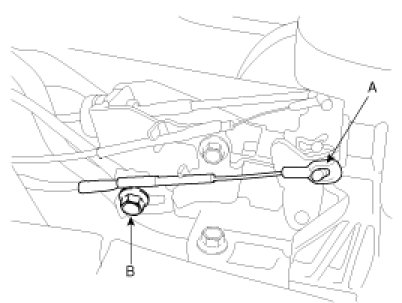

6. Remove the shift lock cable P-LOCK cam(A).
7. Remove the shift lock cable mounting nut(B). (Nut: 1EA)




8. Remove the shift lever bolt(A). (Bolt: 4EA)

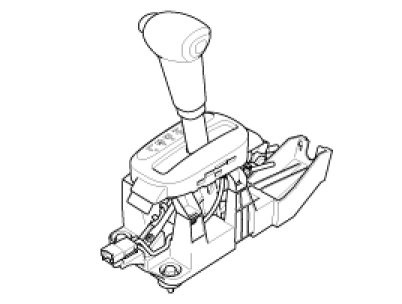

9. Remove the shift lever assembly.






Installation

1. Installation is the reverse of removal.
2. After assembling, check the followings.
(1) When shifting with each position, lever must be operated securely without friction and free from looseness, noise and so on.
(2) When lever shifting, it shall not be stopped easily between each positions.
(3) When lever should be stopped between "P" and "R" position intentionally. It should not be shifted to "R" position by vibration added for lever assembly.




(4) Free from noise when being shifted from "R" to "N", push button being released.
(5) Slider must be operated smoothly between each position.
(6) Slider must be operated smoothly without looseness, sticking and noise.
(7) Shift lock must be operated well.
