Disassembly

DISASSEMBLY

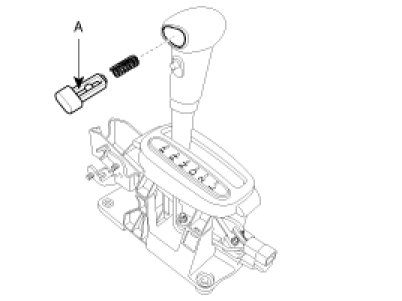

1. Remove the push button(A) from the knob sub assembly.

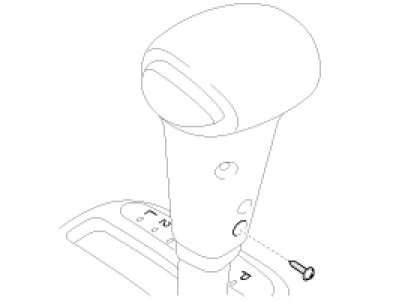

2. Remove the knob sub assembly from the lever sub assembly. (Screw:1EA)




3. Remove the indicator assembly(A).




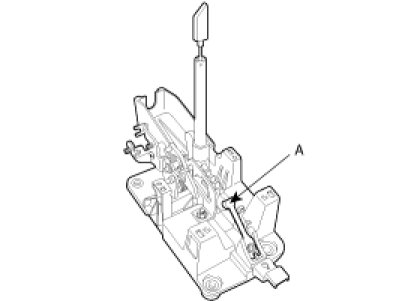

4. Remove the detent spring(A). (Bolt:1EA)




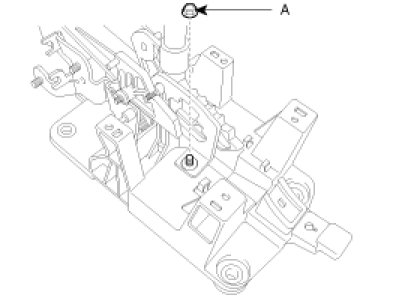

5. Loosen the bracket sub assembly nut(A).




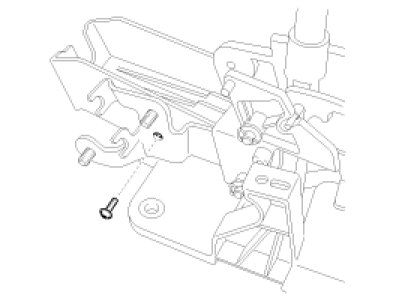

6. Remove the screw.




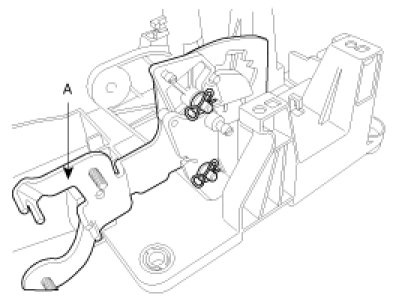

7. Disassemble the bracket sub assembly(A) after removing the cotter pin (2EA).




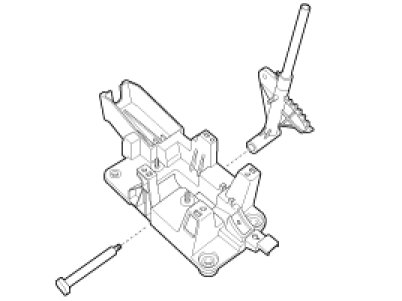

8. Disassemble the hinge shaft from the lever sub assembly.
