Suspension - Rear Strut Creaking Noises
GROUP: ChassisNUMBER: CHA 030
MODEL: 2009-2010MY Rio (JB)
DATE: October 2010
SUBJECT: RIO (JB) STRUT NOISE REAR
This bulletin provides information relating to Some RIO (JB) vehicles produced from July 1, 2008 to January 27, 2010 that may experience a creaking noise emanating from the rear strut when driving on a rough road in winter weather. To remedy this condition, replace the Rear Strut Insulator and Retainer with improved parts as indicated in the required parts section.
Service Procedure:
Foe vehicles with symptom/condition mentioned above; the Rear Strut Insulator and Retainer with the improved version according to the applicable workshop manual procedure.

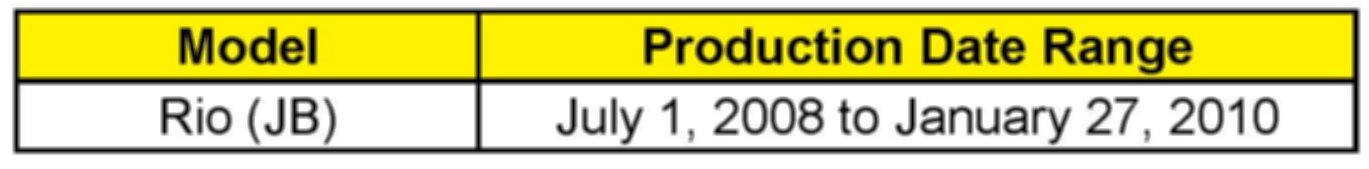

AFFECTED PRODUCTION RANGE

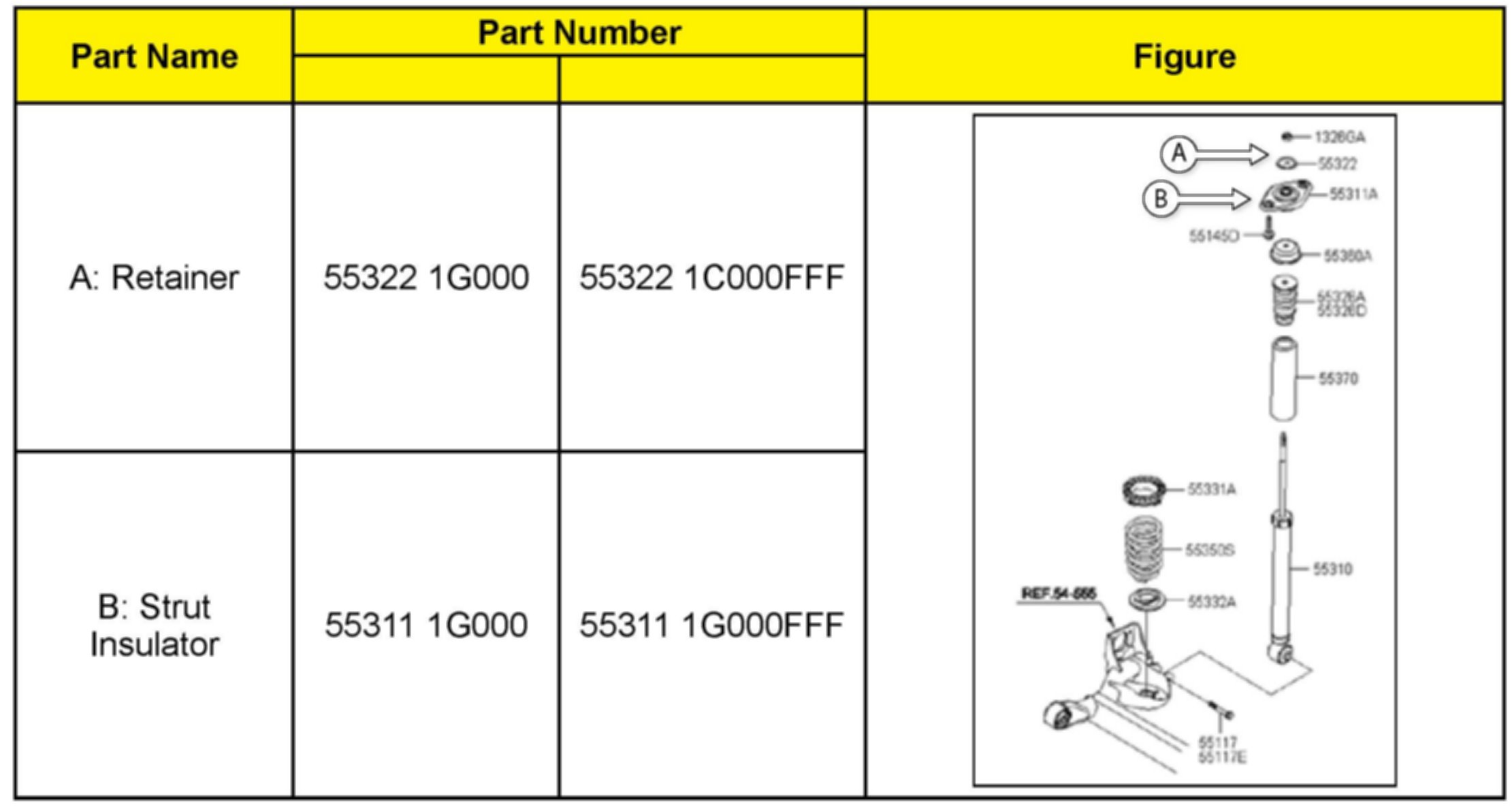

REQUIRED PARTS

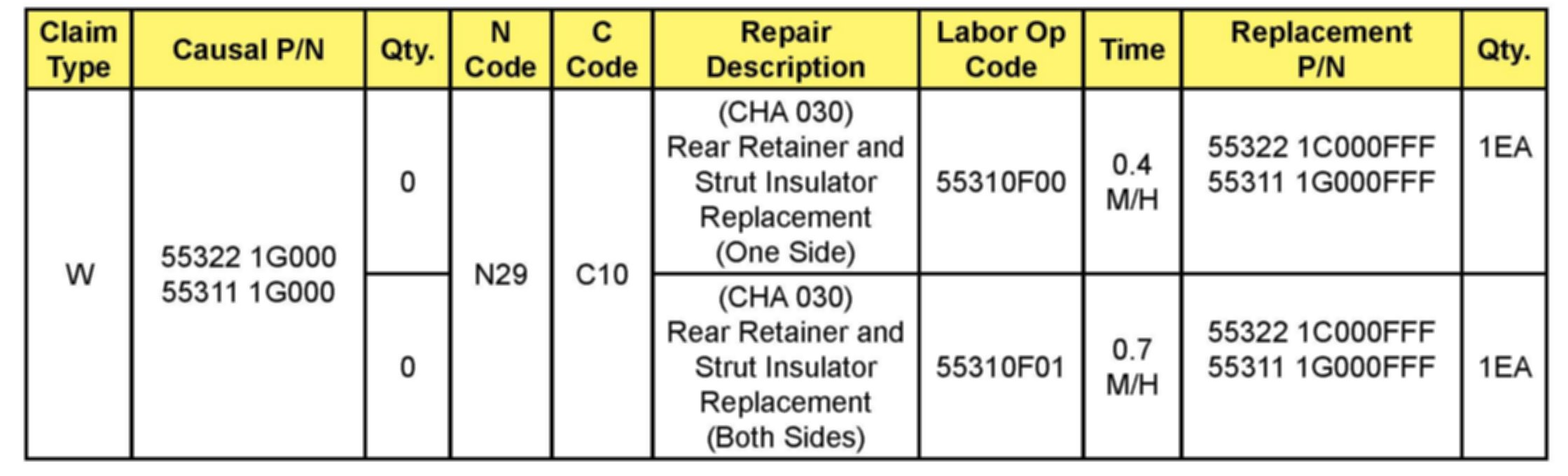

WARRANTY CLAIM INFORMATION
