Reassembly

REASSEMBLY

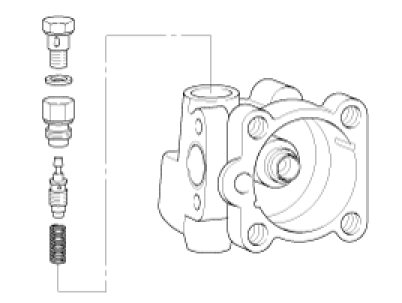

1. Install the flow control spring, the flow control valve and the connector into the pump body.

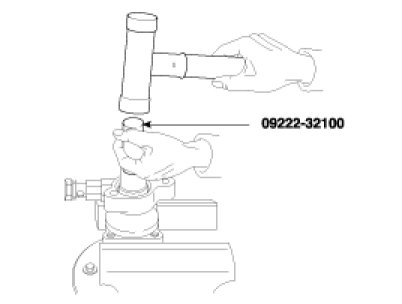

2. Install the oil seal in the pump body by using the special tool(09222-32100).

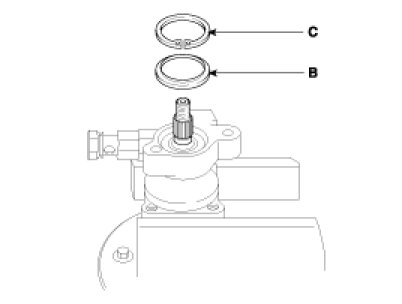

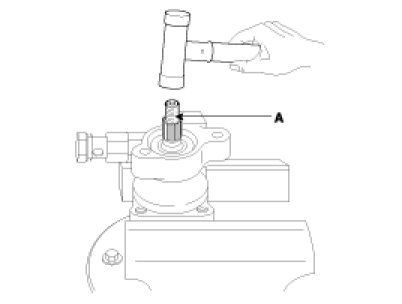

3. After inserting the shaft assembly(A) into the pump body, install the dust spacer(B) and snap ring(C).

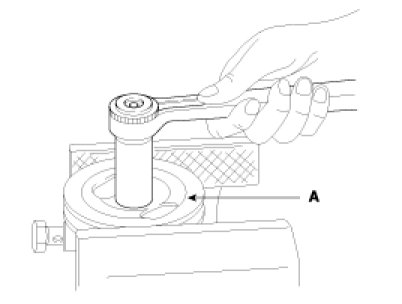

4. Install the pump pulley(A).

Tightening torque :
55 - 69 Nm (5.5 - 6.9 kgf-m, 39.8 - 49.9 lb-ft)

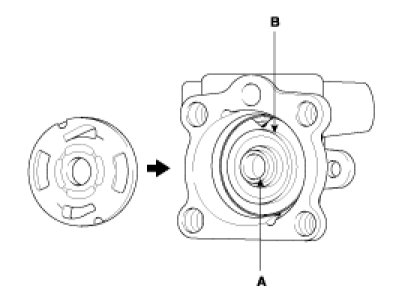

5. Install the spring(A) and inner O-ring(B).
6. Insert the outer O-ring in the oil pump side plate and then install it in the pump body.

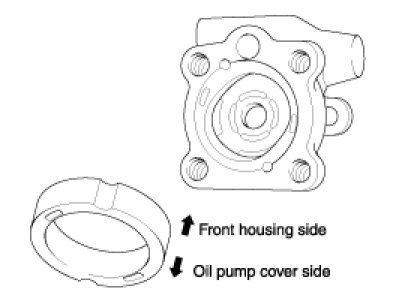

7. After inserting the lock pin into the groove of the front housing, install the cam ring attending to the direction.




8. Install the rotor.
9. Install vanes so that the rounded edges face outward.




10. Install the gasket and oil pump cover assembly.

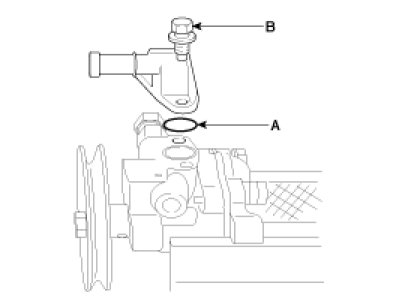

11. Install the O-ring(A) and the suction pipe mounting bolt(B).

Tightening torque :
13.6 - 18.4 Nm (1.36 - 1.84 kgf-m, 9.84 - 13.3 lb-ft)
