Wheel Stud / Lug Nut

Wheel Nut Tightening

1. Tightening torque.

Tightening torque 90 - 110 N.m (9 - 11 Kgf-m, 65 - 79 lb-ft)

CAUTION:
When using an impact gun, final tightening torque should be checked using a torque wrench.

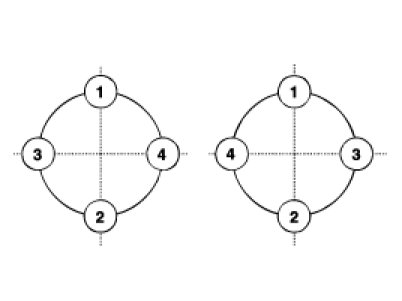

2. Tightening order.
Check the torque again after tightening the wheel nuts diagonally.
