Connecting Rod, Engine

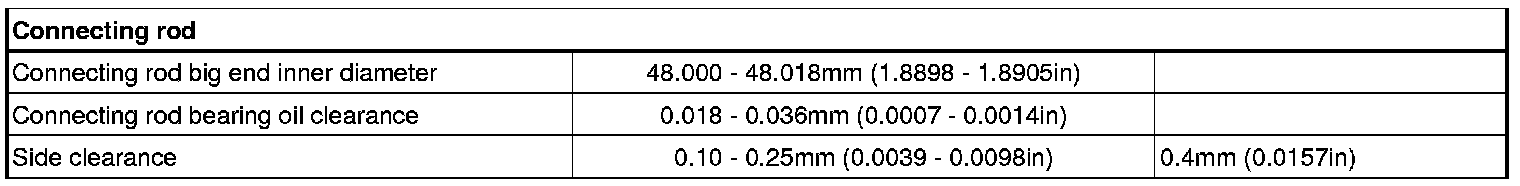

Connecting Rod







End play
Standard 0.1 - 0.25 mm (0.0039 - 0.0098 in)
Maximum 0.4 mm (0.0157 in)

Connecting Rod Cap Nut

Tightening torque 31.4 - 34.3 N.m (3.2 - 3.5 kgf.m, 23.1 - 25.3 lb-ft)
