Home >> Kia >> 2010 >> Rio L4-1.6L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Clutch, M/T >> System Specifications

System Specifications

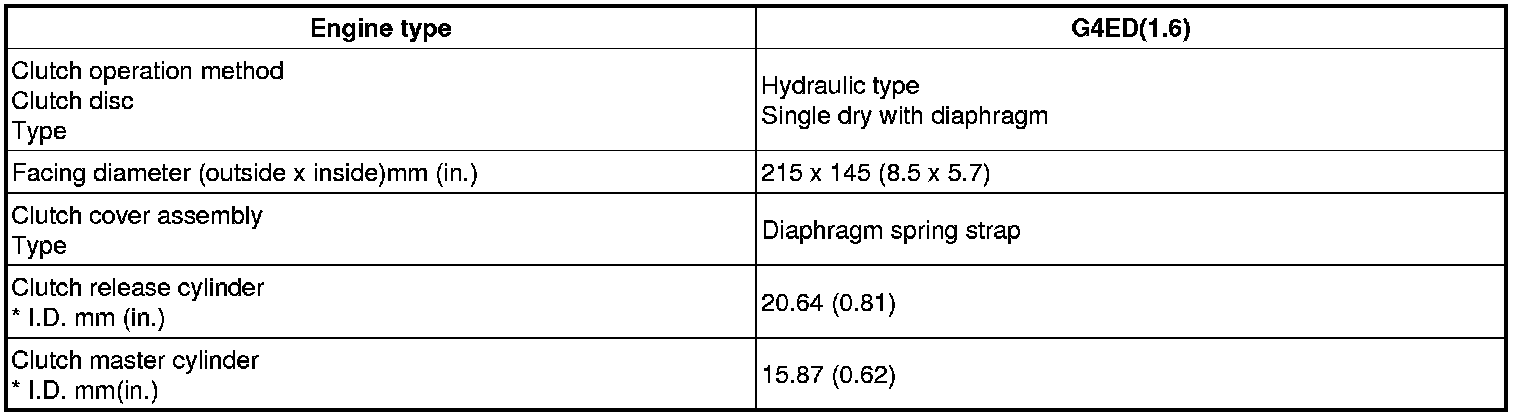

SPECIFICATIONS

* I.D: Inside diameter
SERVICE STANDARD

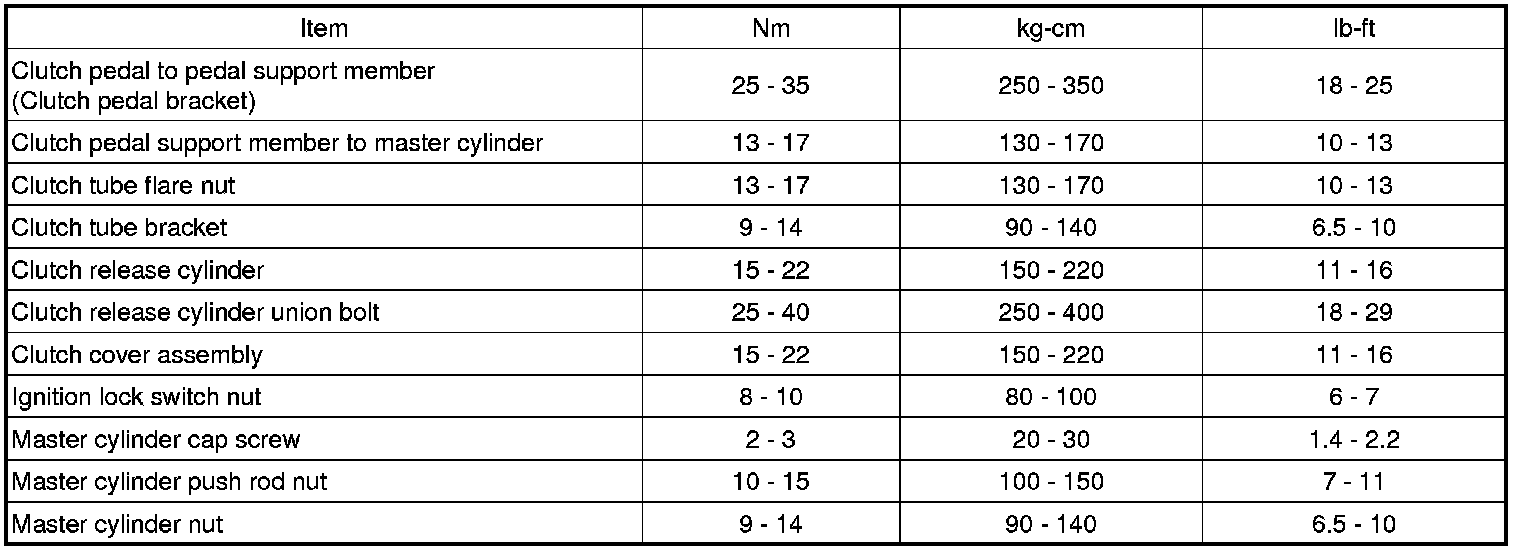

TIGHTENING TORQUE
