Home >> Kia >> 2010 >> Rio L4-1.6L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Brakes and Traction Control >> System Specifications

System Specifications

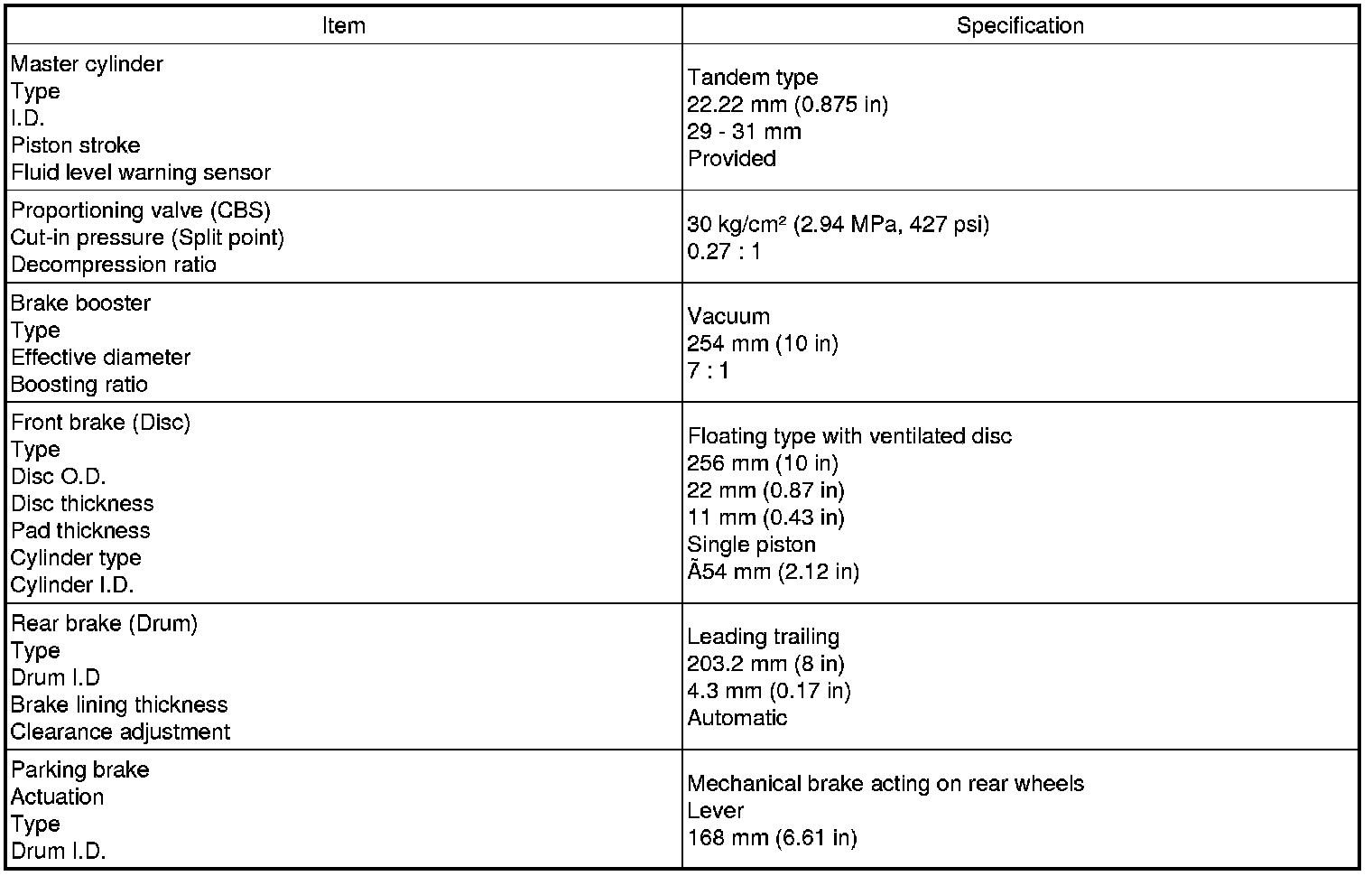

SPECIFICATIONS





NOTE:
ABS : Anti-lock Brake System
CBS : Conventional Brake System

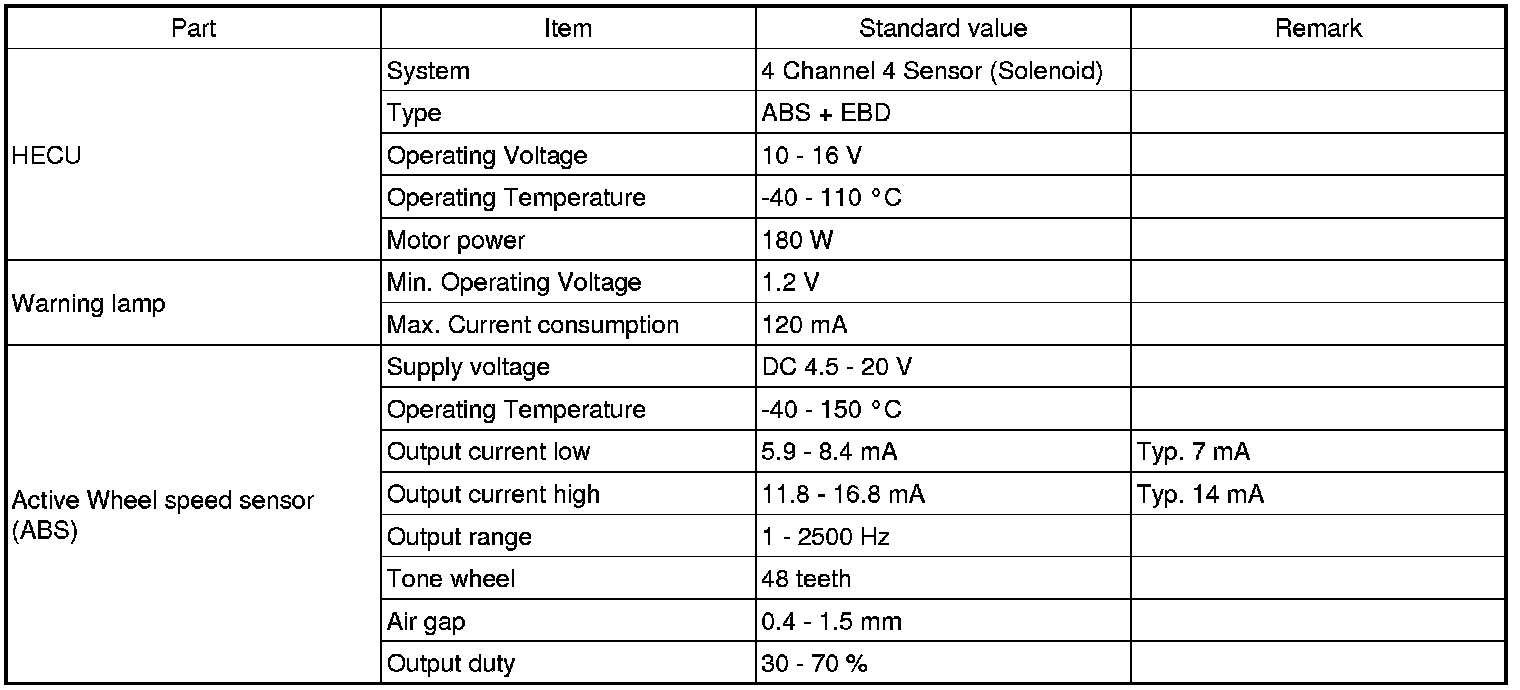

SPECIFICATION(ABS)

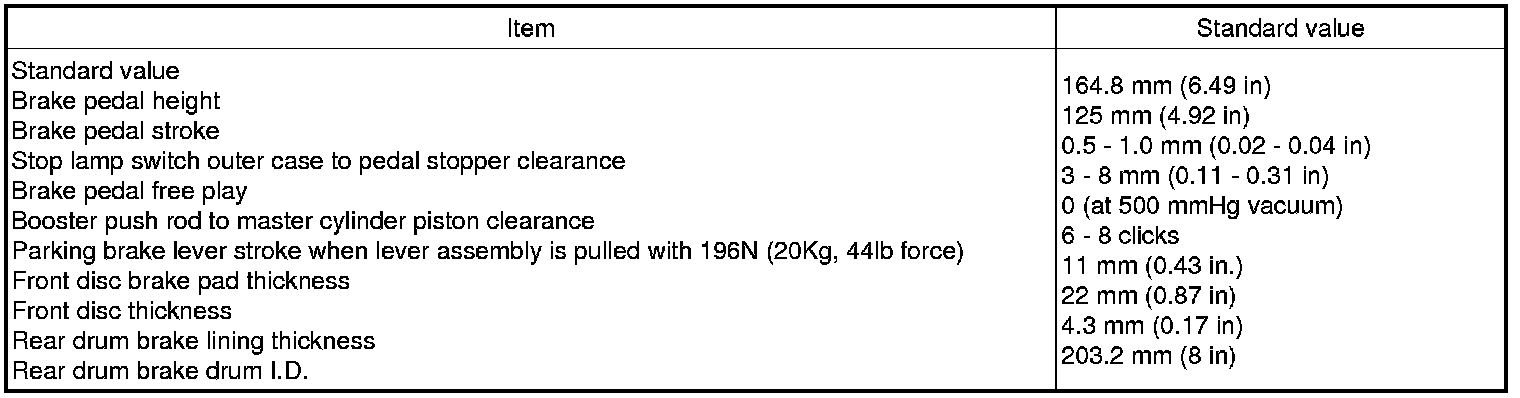

SERVICE STANDARD





TIGHTENING TORQUE
