Pressure Regulating Solenoid: Description and Operation

DESCRIPTION





NOTE:
- SCSV-A/B/C (ON/OFF)
- PCSV-A/B (Duty)
- DCCSV (ON/OFF)

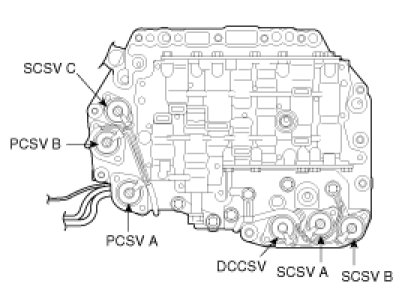

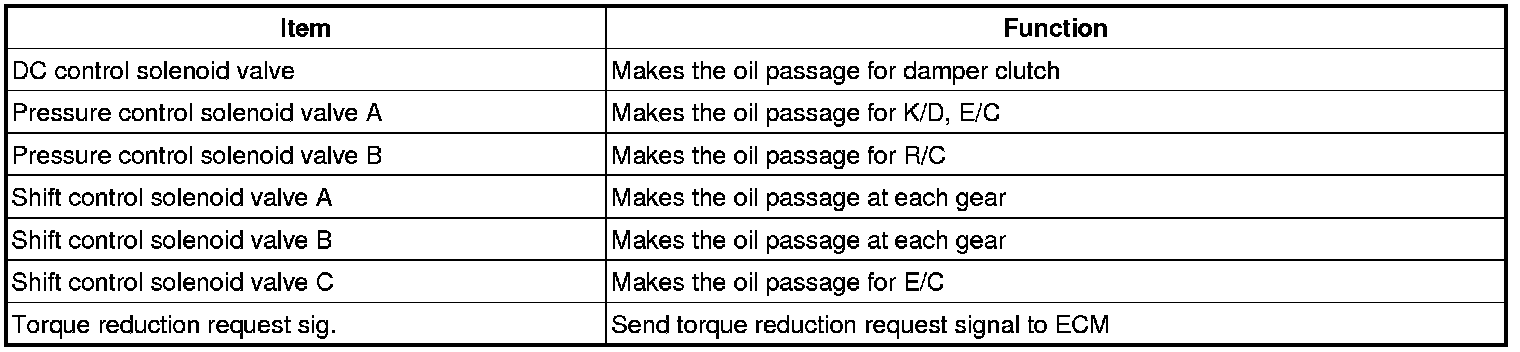

Function
- Damper Clutch Control Solenoid Valve(DCCSV)
: Controlled by the PCM. A damper clutch operates by the DCCSV.
- Shift Control Solenoid Valve-A (SCSV-A)
: Controlled by the PCM. It operates at 1st / 4th gear.
- Shift Control Solenoid Valve-B (SCSV-B)
: Controlled by the PCM. It operates at 1st / 2nd gear.
- Shift Control Solenoid Valve-C (SCSV-C)
: Controlled by the PCM. It operates at 3rd / 4th gear and reduces line pressure.
It controls the end clutch.
- Pressure Control Solenoid Valve-A (PCSV-A)
: Controlled by the PCM. It controls the engaged pressure of the front clutch, end clutch, kick down brake and low & reverse brake.
- Pressure Control Solenoid Valve-B (PCSV-B)
: Controlled by the PCM. It controls the engaged pressure of the rear clutch.






Features

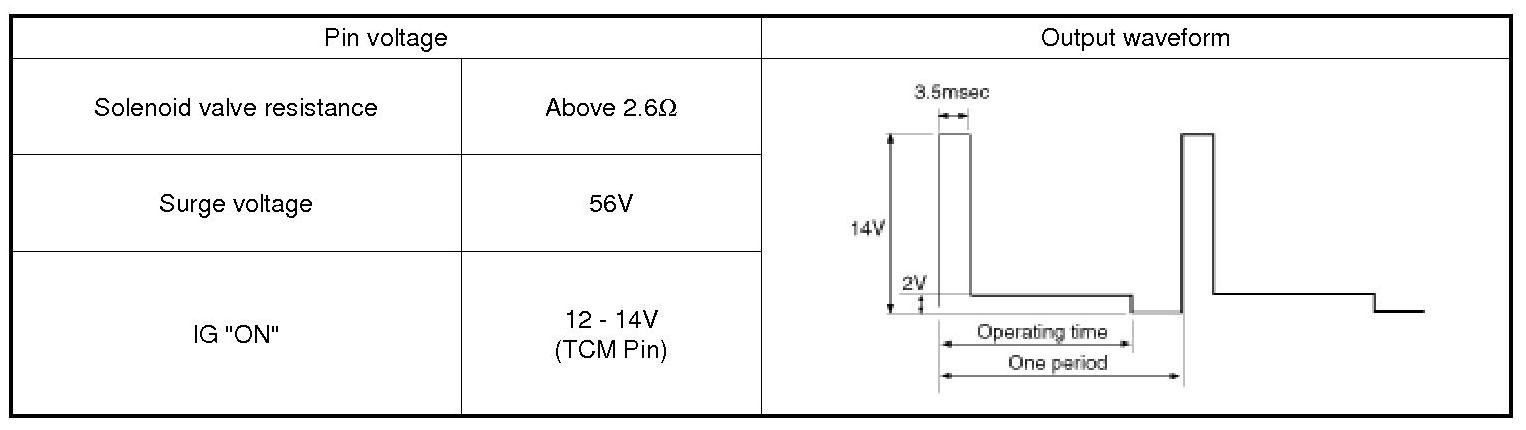

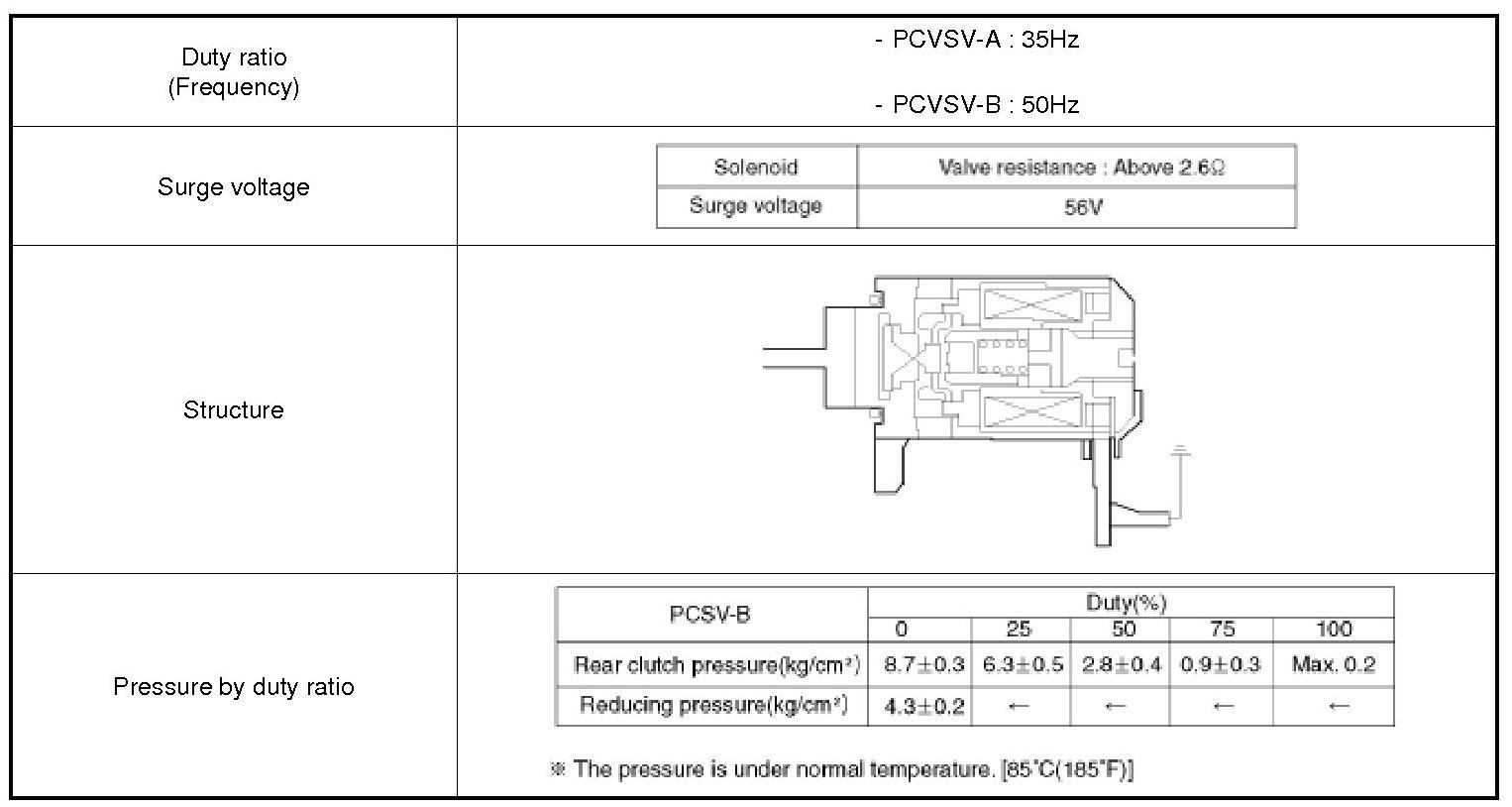

Characteristics

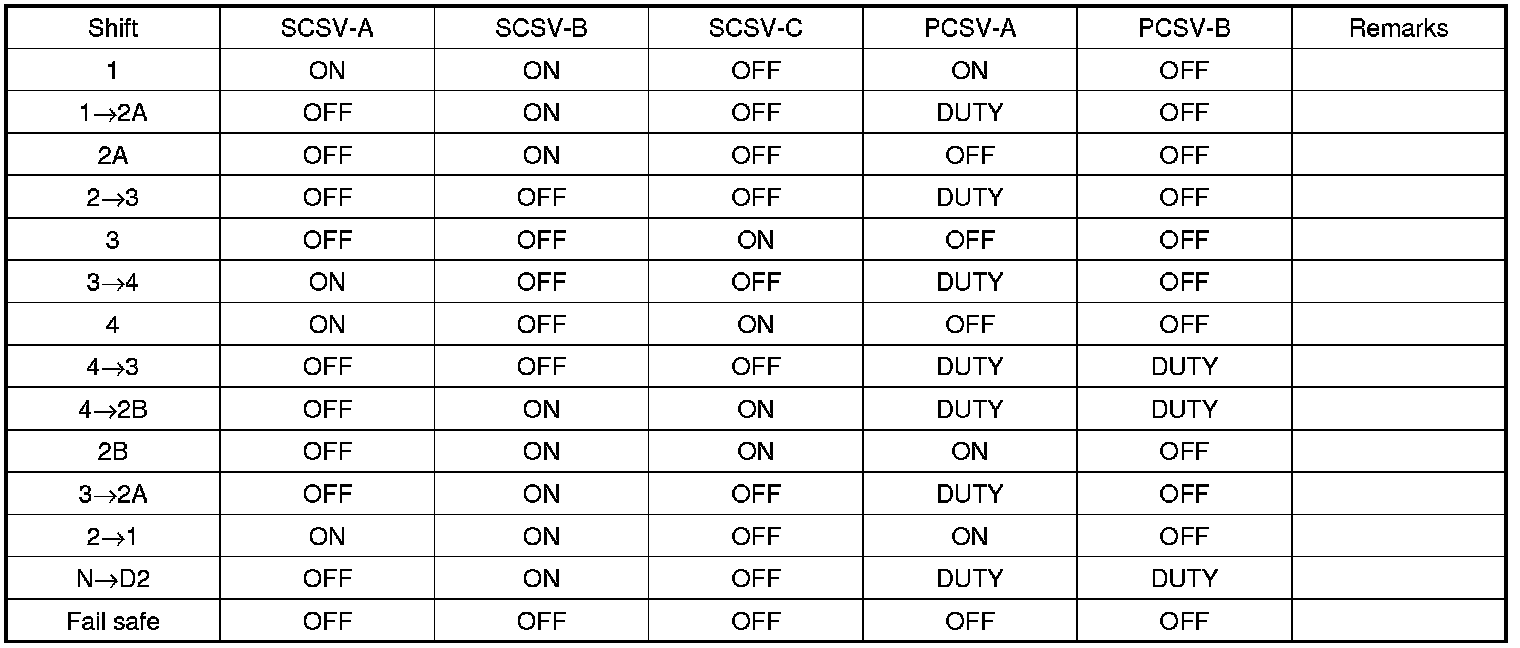

Solenoid operation
