Fuel Injector: Testing and Inspection

INSPECTION

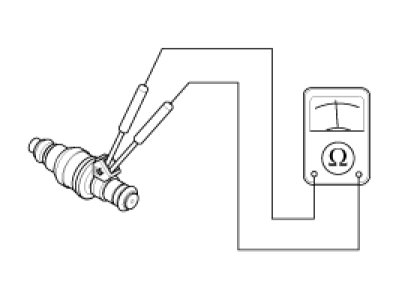

1. Measure resistance between the terminal 1 and 2 of the injector.

Injector Resistance: 13.8 - 15.2 Ohms at 20°C (68°F)





2. If the resistance is not within specification, replace the injector.
