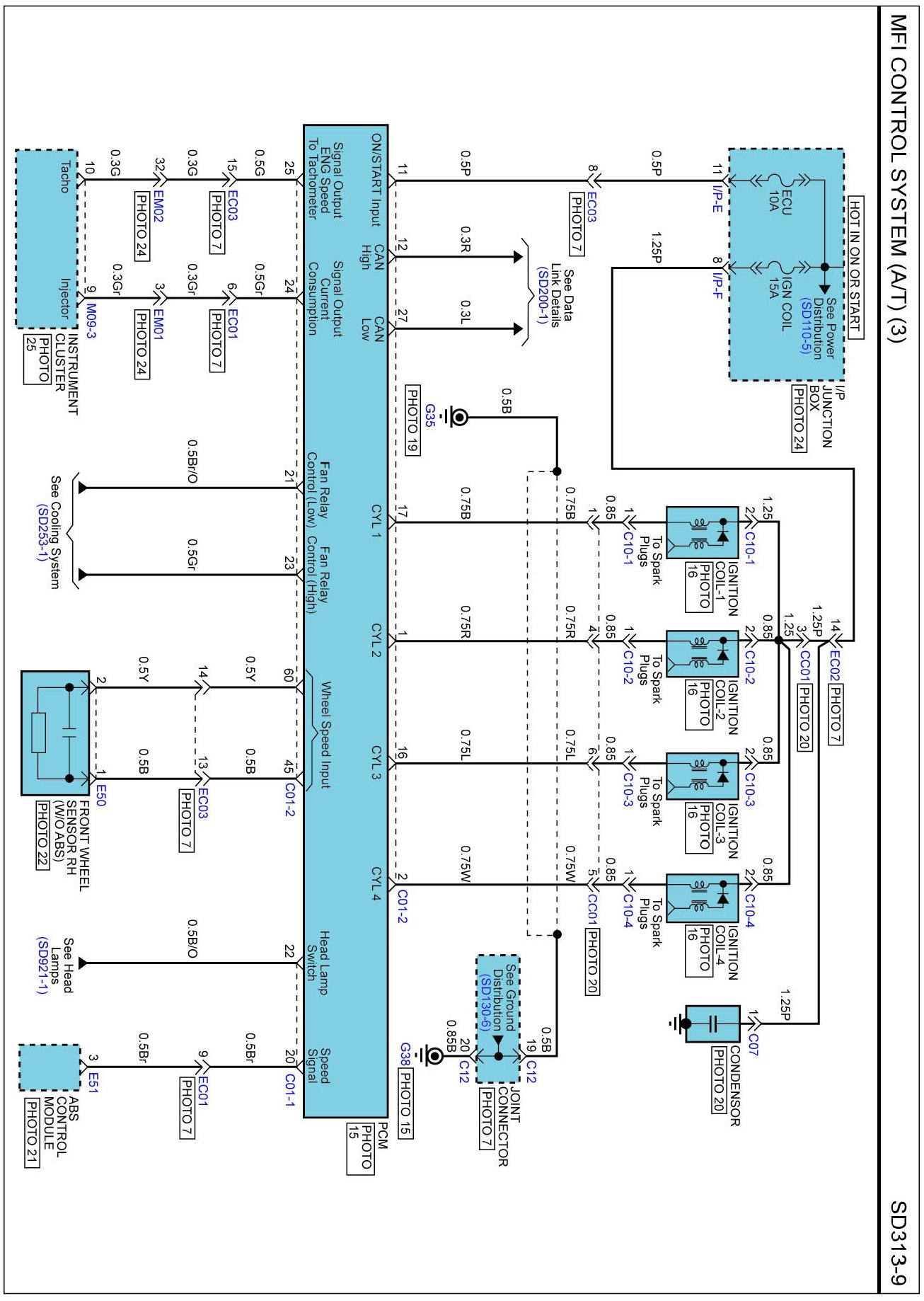

MFI Control Systems A/T (3)

sd313-9 MFI Control System (A/T) (3):

MFI Control System (A/T) (5) Connector Pin Outs:

MFI Control System (A/T) (6) Connector Pin Outs:

Next Diagram MFI Control Systems A/T (4)

Previous Diagram MFI Control Systems A/T (2)

Locations: Location photographs (references to PHOTOS) referred to within these diagrams can be found via the photo number at the vehicle level under Locations by Photo Number. Component Locations
