Home
>>
Kia
>>
2010
>>
Rio L4-1.6L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Relay Box
>>
Application and ID
Relay Box: Application and ID
SD100-1 Fuse & Relay Information (1):

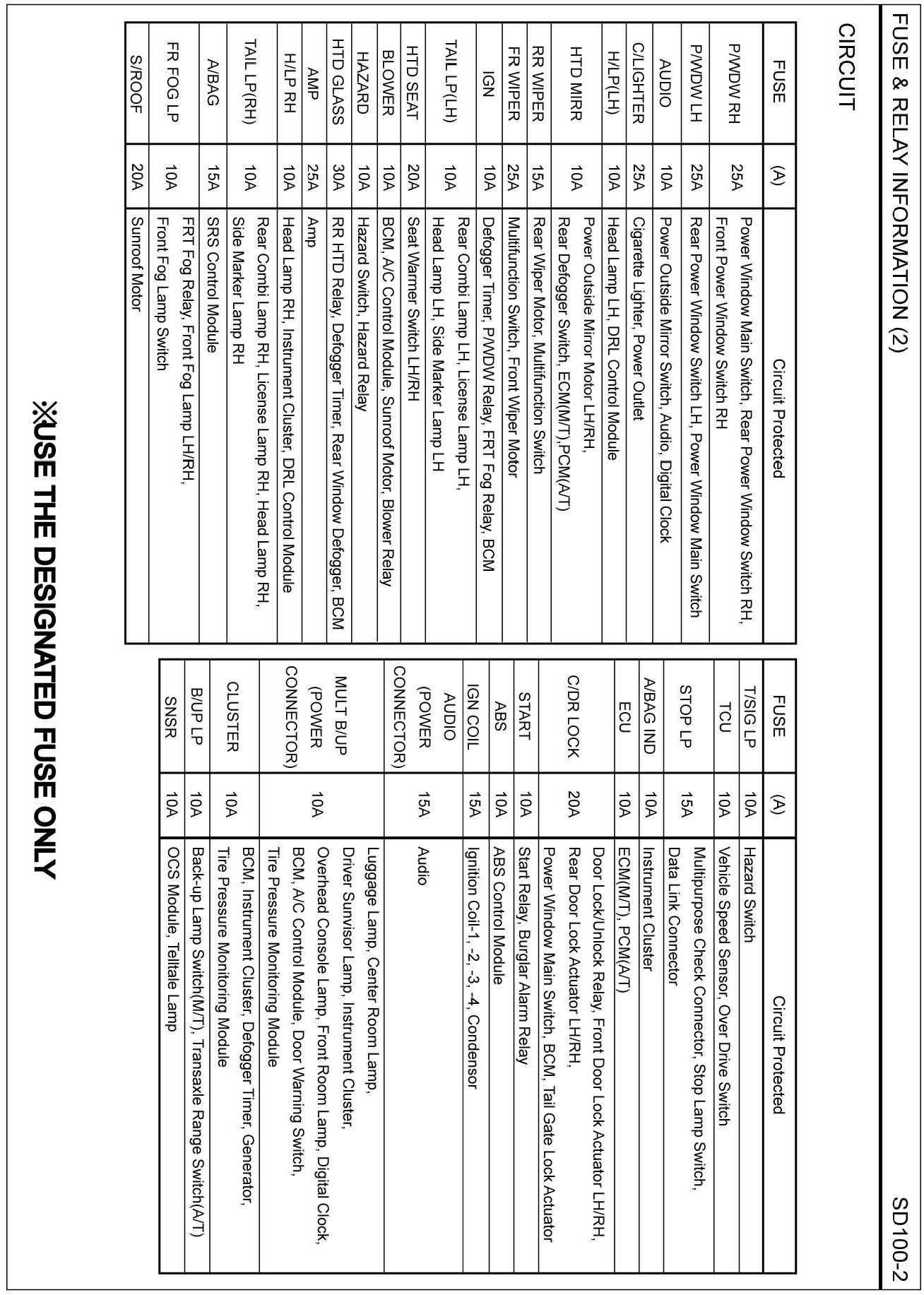

SD100-2 Fuse & Relay Information (2):
SD100-3 Fuse & Relay Information (3):

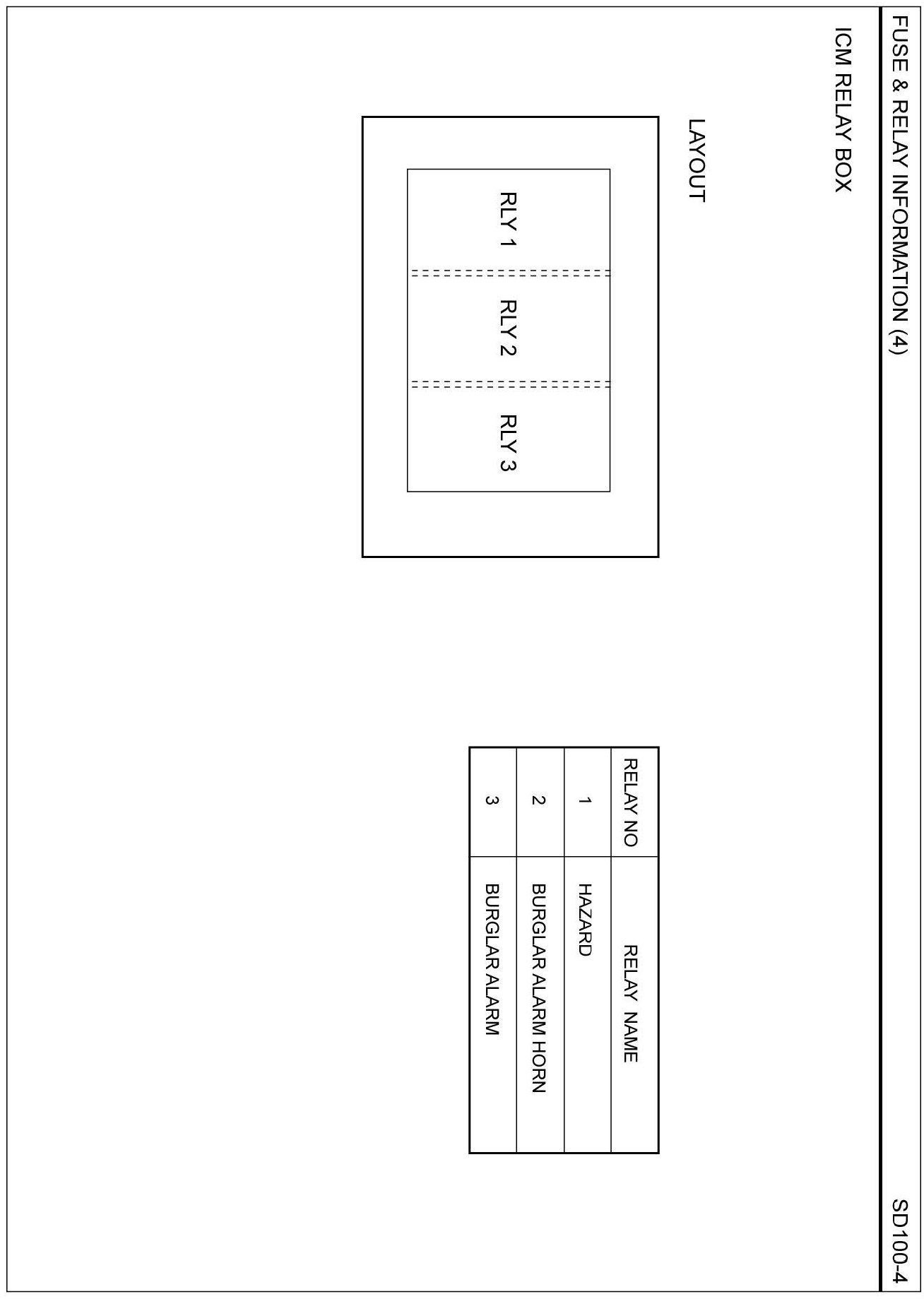

SD100-4 Fuse & Relay Information (4):
