Reassembly

Reassembly

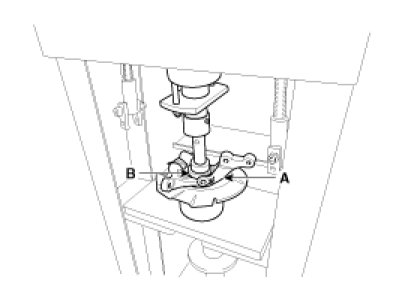

1. Install the hub bearing to the knuckle assembly.
(1) Lay the knuckle assembly (A) on a press.
(2) Lay a new hub bearing upon the knuckle assembly (A).
(3) Lay a suitable adapter (B) upon the hub bearing.
(4) Install the hub bearing to the knuckle assembly by using a press.





CAUTION:
Do not press against the inner race of the hub bearing because it can cause damage to the bearing assembly.
Always use a new wheel bearing assembly.

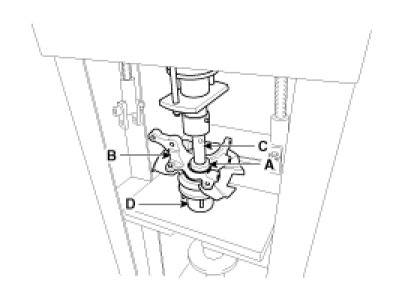

2. Install the hub assembly to the knuckle assembly.
(1) Lay the hub assembly (A) upon a suitable adapter (B).
(2) Lay the knuckle assembly (C) upon the hub assembly (A).
(3) Lay a suitable adapter (D) upon the hub bearing.
(4) Install the hub assembly (A) to the knuckle assembly (C) by using a press.





CAUTION:
Do not press against the inner race of the hub bearing because it can cause damage to the bearing assembly.

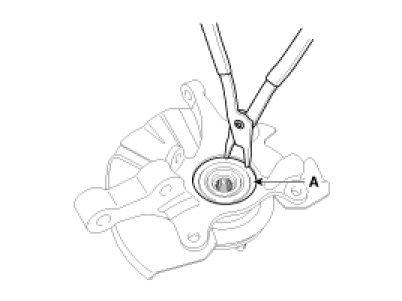

3. Install the snap ring (A) with a snap ring pliers.
