Disassembly

Disassembly

1. Using a snap ring pliers, remove the snap ring (A).




2. Remove the hub assembly from the knuckle assembly.

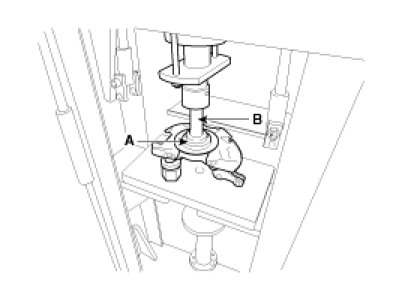

(1) Install the front knuckle assembly (A) on a press.
(2) Lay a suitable adapter (B) upon the hub assembly shaft.
(3) Remove the hub assembly from the knuckle assembly (A) by using a press.




3. Remove the hub bearing inner race from the hub assembly.

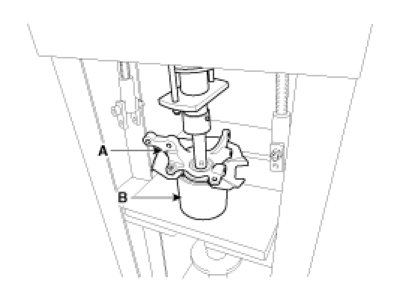

(1) Install a suitable tool (A) to remove the hub bearing inner race on the hub assembly.
(2) Lay the hub assembly and tool (A) upon a suitable adapter (B).
(3) Lay a suitable adapter (C) upon the hub assembly shaft.
(4) Remove the hub bearing inner race (D) from the hub assembly by using a press.




4. Remove the hub bearing outer race from the knuckle assembly.

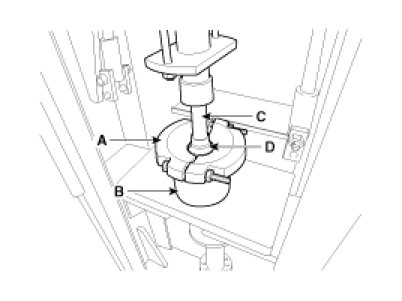

(1) Lay the hub assembly (A) upon a suitable adapter.
(2) Lay a suitable adapter (B) upon the hub bearing outer race.
(3) Remove the hub bearing outer race from the knuckle assembly by using a press.




5. Replace the hub bearing with a new one.
